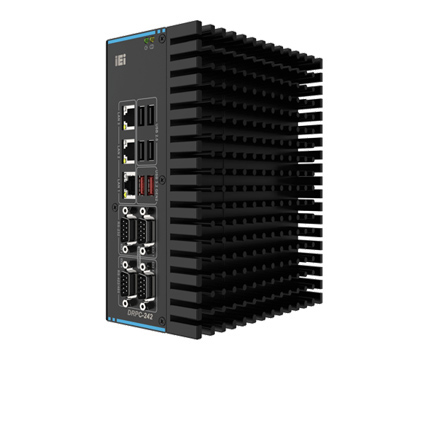

DRPC-242-ADL-P DIN-Rail Embedded PC
Features:
- Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP) - 2 x DDR4 3200 MHz SO-DIMM (Max. 64GB)
- 1 x 2.5'' SATA 6Gb/s HDD/SSD bay
- 1 x M.2 2280 M-key, 1 x 2230 A-key, 1 x 3042/52 B-key
- 1 x Lockable HDMI™ 1.4b, 1 x DP 1.4b
- 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
- 2 x USB 3.2 Gen2, 4 x USB 2.0
- 3 x 2.5 GbE LAN
- Operating Temperature: -4°F- 140°F
- CE/FCC compliant

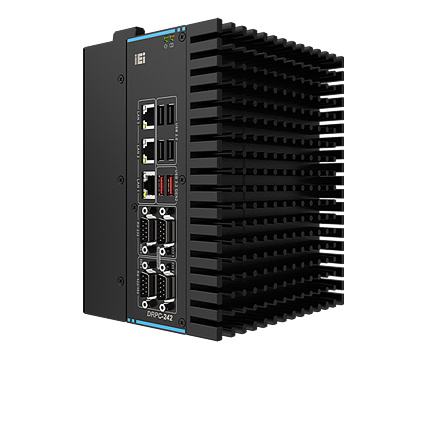

The DRPC-242-ADL-P is a robust, fan-less din-rail embedded system designed to meet diverse computing needs. Boasting a range of supported CPUs, including Intel® Core™ i7-1370PE, i7-1260P, i5-1340PE, i5-1240P, i3-1320PE, i3-1220P, and Intel® Celeron® 7305, this system offers exceptional processing power. Its chipset, SoC, coupled with 8 GB DDR4 memory (expandable up to 64GB), ensures efficient multitasking. With a wide voltage input range (12 ~ 28 VDC) and low power consumption, it's suitable for a broad range of industrial applications. The DRPC-242-ADL-P features extensive I/O interfaces, including USB 3.2 Gen2 and USB 2.0 ports, multiple Gigabit Ethernet ports, HDMI™ 1.4b, DP 1.4b for high-resolution displays, and versatile COM ports with isolation. Expansion options include M.2 slots for PCIe Gen3/Gen4, USB, and SIM card sockets, as well as PCIe Gen3 x4 backplane support.
Barebone & Base Configurations
- Intel® Celeron® 7305 (5-core, 15W TDP)
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP) (Optional)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP) (Optional)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP) (Optional)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP) (Optional)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP) (Optional)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP) (Optional) - 8GB DDR4 SO-DIMM Memory
- 250GB 2.5" SATA Solid State Drive
- 2 x RS-232 w/ 2.5KV Isolation, 2 x RS-422/485 w/ 2.5KV Isolation
- 2 x USB 3.2, 4 x USB 2.0
- 3 x 2.5 GbE LAN
- 1 x HDMI, 1 x DisplayPort
- 1 x M.2 M-key, 1 x M.2 A-key, 1 x M.2 B-key
- 12-24 VDC or 12-28 VDC Power Input 120W or 180W Power Adapter (Optional)
