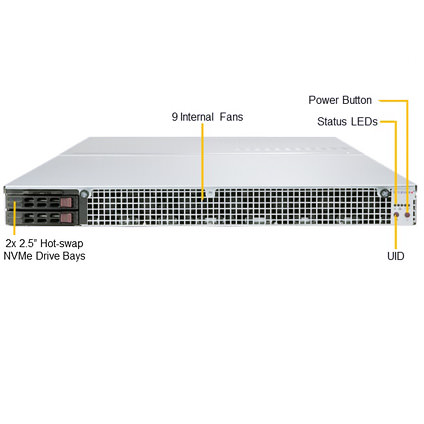

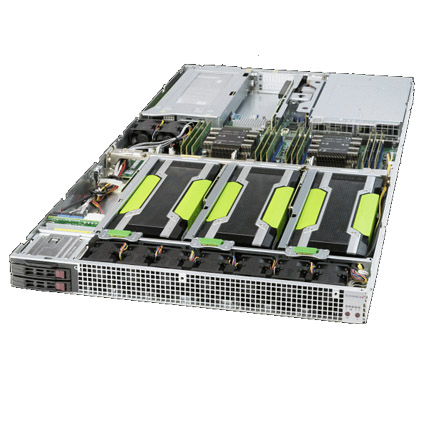

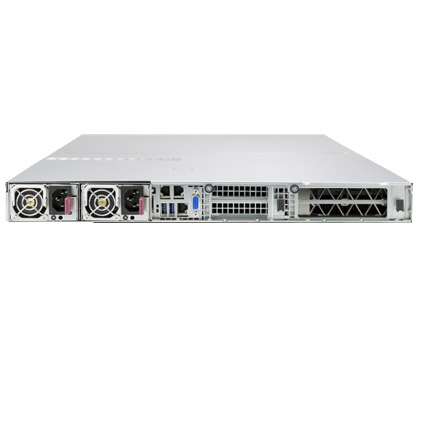

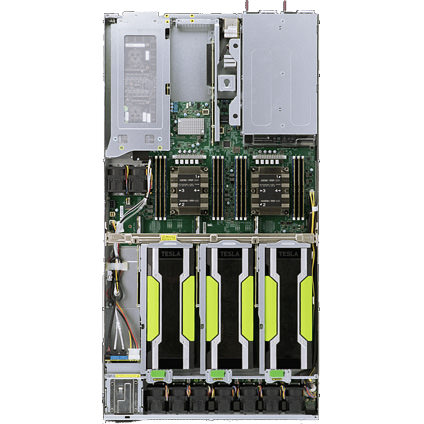

Supermicro SuperServer 1029GQ-TNRT w/ 4x GPU/Xeon Phi Cards, 2x NVMe Drive and 2x 10GbE


Supports up to 4 NVIDIA® GPUs in 1U
Support Active/Passive GPUs
GPU Health Monitoring with Fan Speed Control

  • 1U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12x DIMM Slots
  • 2x Hot-swap 2.5" NVMe Drive Bays, 2x Internal 2.5" SAS/SATA Drive Bays
  • 4x PCI-E 3.0 x16 (FHFL) Slots
    1x PCI-E 3.0 x16 (LP) Slot
    1x PCI-E 3.0 x8 (LP) Slot
  • 2x 10GBase-T LAN Ports with Intel X540
  • 9x 40mm Counter-rotating Fans with Air Shroud & Optimal Fan Speed Control
  • 1000W Redundant Power Supplies Titanium Level (96%)
  • 35.2" Depth Rack Mount Chassis

The Supermicro Server 1029GQ-TNRT 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 1.5TB DDR4 ECC 3DS LRDIMM Memory, built-in two 10GBase-T LAN and IPMI LAN ports, supports up to four GPU/Xeon Phi cards. The Supermicro SuperServer 1029GQ-TNRT comes with two 2.5" hot-swap NVMe drive bays, two internal SAS/SATA drive bays, nine 40mm heavy duty counter-rotating fans, and is equipped with 1000W redundant titanium Level power supply.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DGQ Motherboard

  • Supermicro X11DGQ Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 1x 450GB Intel® SSD DC P3520 Series U.2 PCIe 3.0 x4 NVMe Solid State Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level High-efficiency

Barebone Only:
