Supermicro SuperServer 1029P-WTRT w/ 10x 2.5" SAS/SATA Bays 2x 10GBase-T LAN

Features:


Web Server, Firewall Apps
Corporate-Wins, DNS, Print, Login
Gateway, Provisioning Servers
Compact Network Appliance
Cloud Computing
  • 1U Rackmount Server

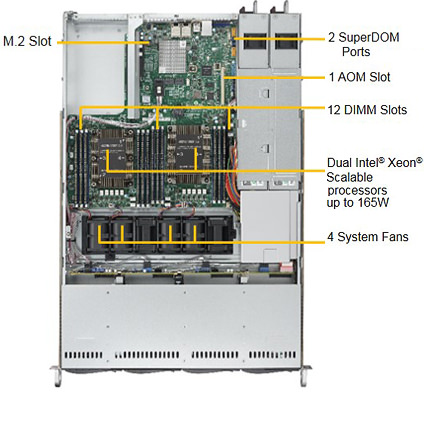

  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C622 Express Chipset
  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 12x DIMM slots

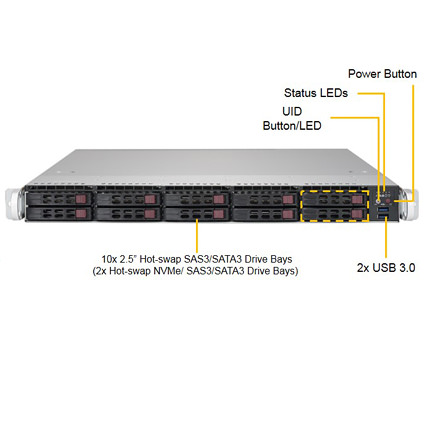

  • 10x 2.5" Hot-swap SAS/SATA Drive Bays (Default 8 SATA3, 2 NVMe or SATA3)
  • 2x PCI-E 3.0 x16 (FHHL) Slots
    1x PCI-E 3.0 x8 (LP) Slot
    1x PCI-E 3.0 x16 for Add-on-Module (AOM)
    1x PCI-E M.2 SSD slot
  • 2x 10GBase-T Ethernet LAN Ports via Intel X722
  • 1x VGA, 6x USB 3.0 (4 Rear, 2 Front)
  • 4x 40mm Counter-rotating PWM Fans, 2 Fans for AOC Cooling
  • 2x SuperDOM (Disk on Module) Ports
  • 700W/750W Redundant Power Supplies, Platinum Level High-efficiency
  • 23.5" Depth Rack Mount Chassis

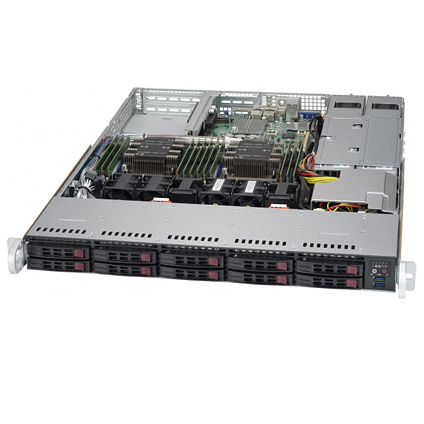

The Supermicro 1029P-WTRT 23.5" depth 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 1.5TB DDR4 ECC 3DS Memory, built-in six USB 3.0 and two 10GBase-T LAN ports. The Supermicro Server 1029P-WTRT comes with ten 2.5" hot-swap drive bays with two NVMe supported. Is equipped with four 40mm counter-rotating fans, and 700W/750W redundant platinum Level power supplies.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DDW-NT Motherboard


  • Supermicro X11DDW-NT Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C622 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • 6x USB 3.0 Ports
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 700W Redundant Platinum Level Power Supplies

Barebone Only:

$1,435.00

Configured:

$2,955.00

Customize
