Supermicro Ultra SuperServer 1029U-TRTP w/ 10x 2.5" SATA and 2x 10G SFP+ Ports

Features:


Virtualization, Cloud Computing , High End Enterprise Server
  • 1U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

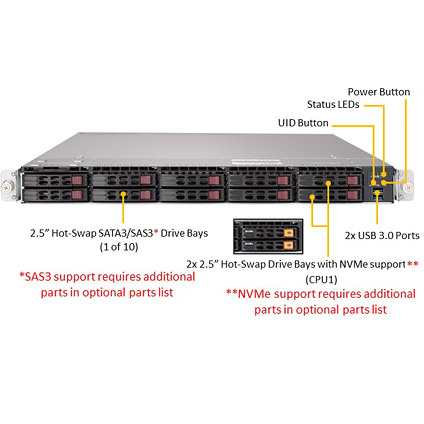

  • 10x 2.5" Hot-swap SATA3 Drive Bays:
    10x SATA3 (2 Hybrid Ports: 2 NVMe Optional)
  • 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
    2x PCI-E 3.0 x8 Low-profile Slots (1 Internal)

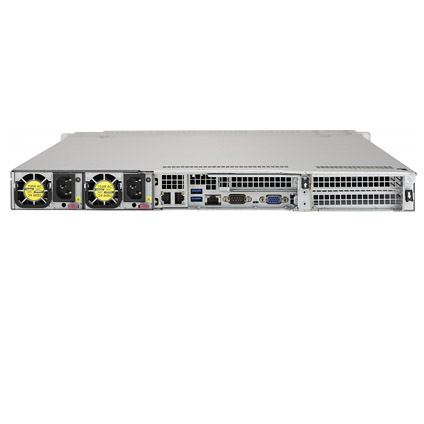

  • 2x 10G SFP+ Ethernet LAN Ports

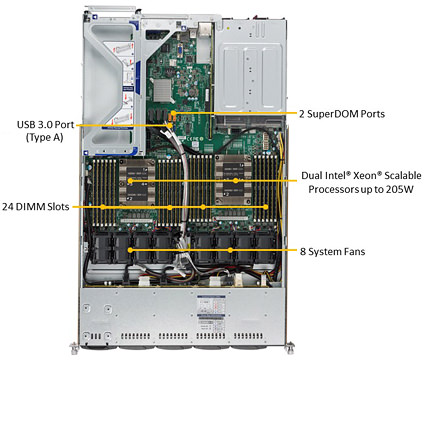

  • 8x Heavy Duty Fans with Fan Speed Control
  • 750W Redundant Platinum Level (94%+) Power Supplies
  • 27.8" Depth Rack Mount Chassis

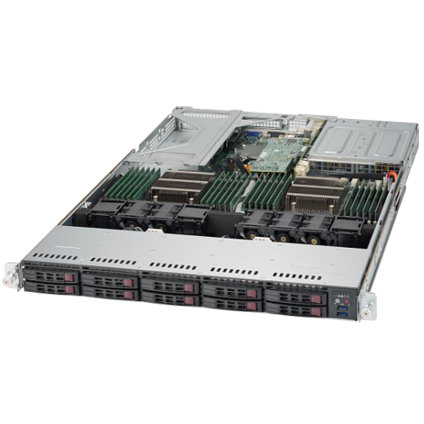

The Supermicro Ultra SuperServer 1029U-TRTP is an 27.8" depth 1U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in two 10G SFP+ ports. The 1029U-TRTP Supermicro Server comes with ten 2.5" hot-swap SATA3 drive bays, is equipped with eight heavy duty fans, and 750W redundant platinum level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Base Configurations

1U Supermicro Rack Mount Server With X11DPU Motherboard


  • Supermicro X11DPU Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap SATA3 Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10G SFP+ Ethernet Ports via AOC-URN2-I2XS Add-on Card (Intel® 82599ES)
  • 750W Redundant 80 Plus Platinum Power Supply

Configured:

$3,539.00

Customize
