Supermicro SuperServer 2029P-C1RT w/ 16x 2.5" SAS3/SATA3 Drive Bays 2x 10GbE


  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots

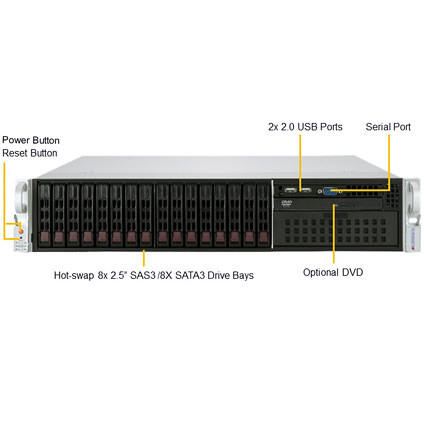

  • 16x 2.5" Hot-swap Drive Bays: Supports 8x 2.5" SAS3 & 8x 2.5" SATA3 Drive Bays
    Optional Support: 2x Fixed 2.5" NVMe/SSD/HDD
  • Optional DVD-ROM Drive Supports 1x Slim or 1x 5.25" DVD Drive
  • 1x M.2 Slot
  • 4x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Low-profile Slots
  • 2x 10GBase-T LAN Ports with Intel® X722
    Integrated IPMI 2.0 with KVM and Dedicated LAN

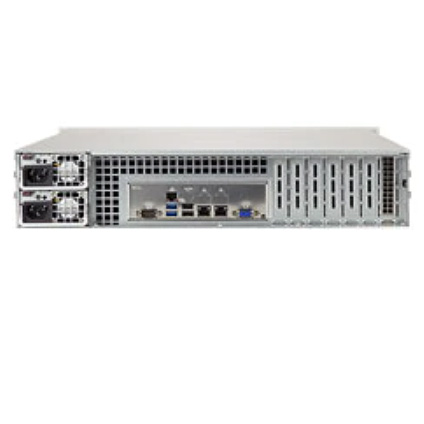

  • 2x SuperDOM, 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0, 1x Type A
  • 3x 80mm Heavy Duty Fans with PWM Fan Speed and Cooling Zone Control
  • 1000W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 24.8" Depth Rack Mount Chassis

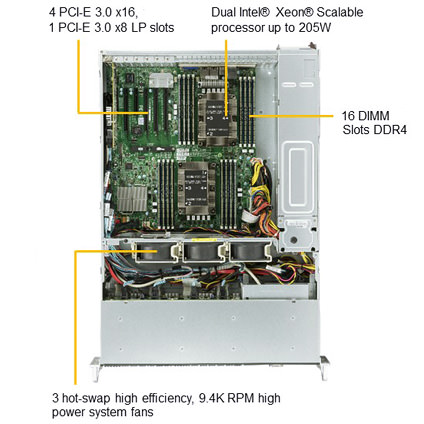

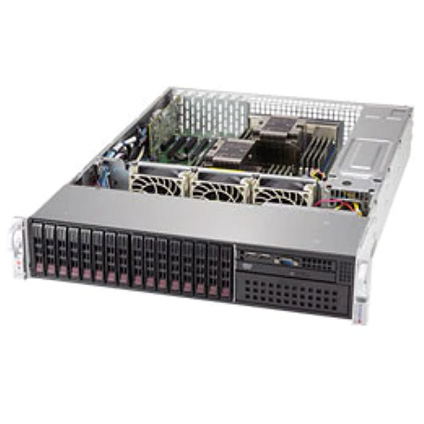

The Supermicro Server 2029P-C1RT is a 24.8" depth 2U Rackmount server that features dual Intel® Xeon® Scalable Processor and Intel® C621 Chipset, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, built-in dual port 10GBase-T LAN. The Supermicro SuperServer 2029P-C1RT comes with sixteen 2.5" hot-swap drive bays, three 80mm hot-swap PWM fans, and is equipped with 1000W redundant Titanium level power supply.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPi-NT Motherboard

  • Supermicro X11DPi-NT Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 16x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:
