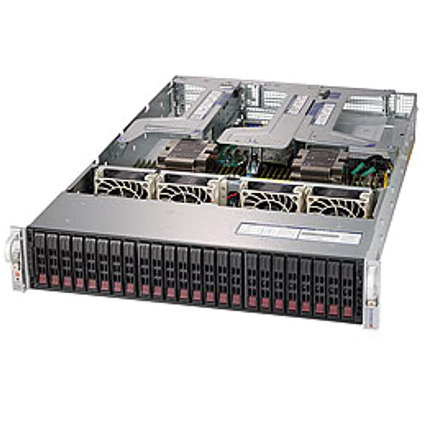

Supermicro Ultra SuperServer 2029U-E1CRTP w/ 24x 2.5" SAS3 and 2x 10G SFP+ LAN

Features:

  • Flexible Networking Options
  • 2U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset

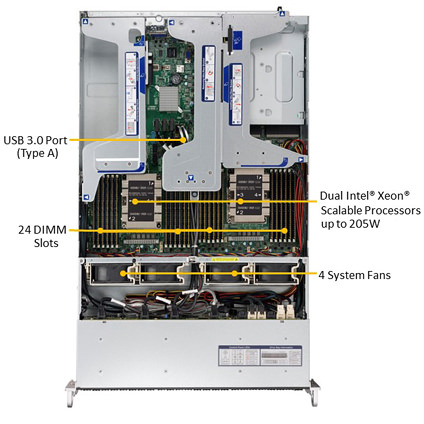

  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

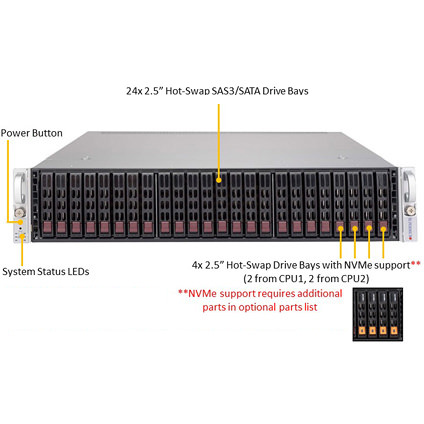

  • 24x 2.5" Hot-swap Drive Bays: 24 SAS3 via Optional Add-on Card (4x Hybrid Ports - Optional 4x NVMe)
  • 1x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
    5x PCI-E 3.0 x8 Full-Height 10.5" Length Slots
    1x PCI-E 3.0 x8 Low Profiles Slot
    1x PCI-E 3.0 x8 (Internal LP)
  • 2x 10G SFP+ Ethernet Ports
  • 4x Heavy Duty 80mm Fans
  • VGA: Aspeed AST2500
  • 800W Redundant Titanium Level (96%) Power Supplies
  • 27.76" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 2029U-E1CRTP is an 27.76" depth 2U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in two 10G SFP+ ports via AOC-2UR68-i2XS add-on Card. The 2029U-E1CRTP 2U Rackmount server comes with twenty four 2.5" hot-swap SAS3 drive bays, is equipped with four 80mm heavy duty fans, and 800W redundant Titanium level power supply.


Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Base Configurations

2U Supermicro Rack Mount Server With X11DPU Motherboard


  • Supermicro X11DPU Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10G SFP+ LAN Ports via AOC-2UR68-i2XS Add-on Card (Intel® 82599ES)
  • 800W Redundant 80 Plus Titanium Power Supply

Configured:

$4,005.00

Customize
