Supermicro BigTwin SuperServer 221BT-HNC9R
Features:
Mission Critical HPC
Virtualized Big Data Analytics
High-Density Storage RAID Array

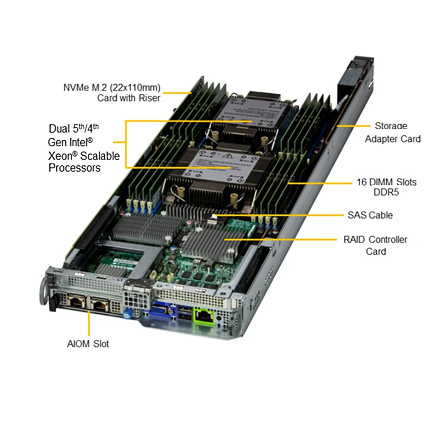

Four Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
- Dual Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- 16x DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600

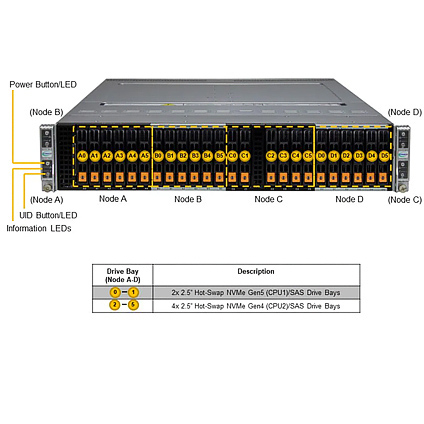

- 6x Hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS)
Built-in SAS3 Support via Broadcom 3908; IR Mode - 1x PCI-E 5.0 x16 (LP) Slot, Tool-less support
Internal PCI-E 4.0 x8 for 2x M.2 NVMe Support Onboard
Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1 - Network connectivity via AIOM (OCP 3.0 compliant)

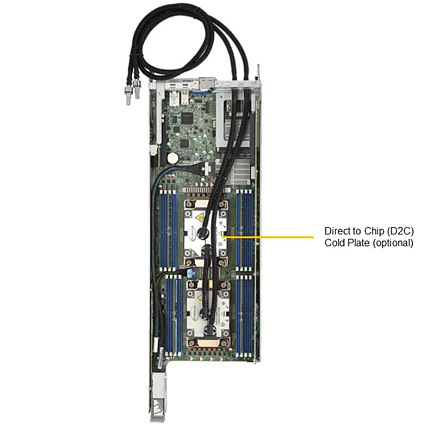

- Liquid Cooling Support

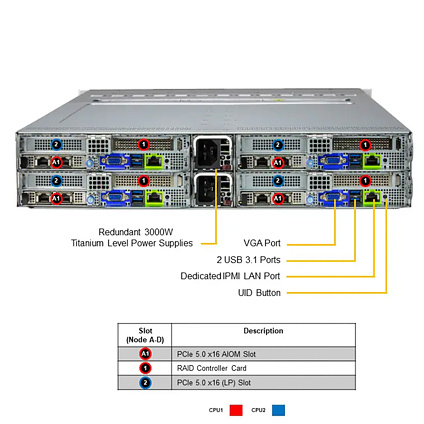

4x cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design - 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
- 28.75" Depth Rack Mount Chassis

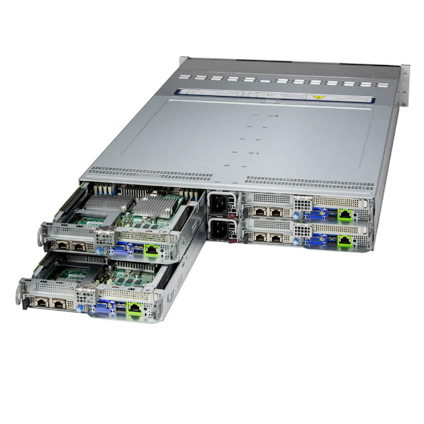

The Supermicro BigTwin SuperServer 221BT-HNC9R is a 28.75" depth 2U 4-nodes high performance rackmount server. Each nodes supports dual 4th/5th Gen. Intel Xeon Scalable Processor, 16x DIMM slots supports up to 4.0TB ECC DDR5 RDIMM memory. The Supermicro Server 221BT-HNC9R comes with 24x hot-swap 2.5" NVME/SAS drive bays, is equipped with 3000W redundant titanium level power supply.
