Supermicro BigTwin SuperServer 221BT-HNTR

Features:


All-Flash NVMe Hyperconverged Infrastructure
Container-as-a-Service; Application Accelerator
High-Performance File System
Diskless HPC Clusters

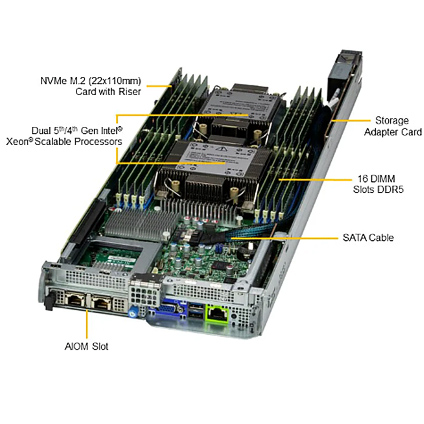

Four Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 Chipset
  • 16x DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600

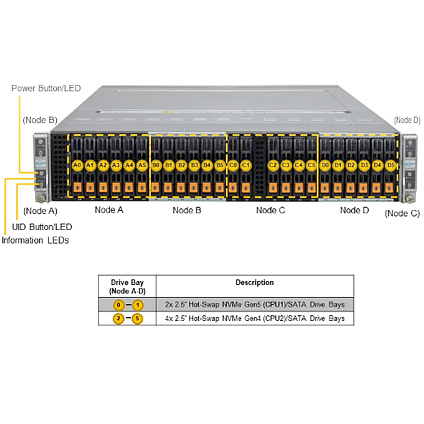

  • 6x Hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe/SATA and 4x PCIe 4.0 NVMe/SATA)
  • Tool-less support
    Internal PCIe 4.0 for 2 x4 M.2 NVMe support onboard
    2x PCI-E 5.0 x16 (LP) Slot
    Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Network connectivity via AIOM (OCP 3.0 compliant)

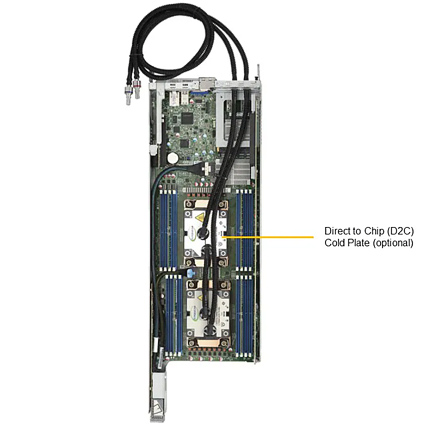

  • Liquid Cooling Support
    4x cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design

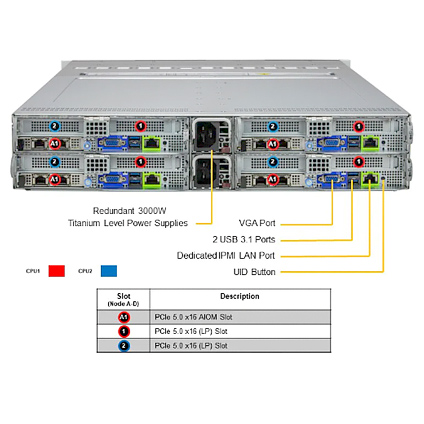

  • 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • 28.75" Depth Rack Mount Chassis

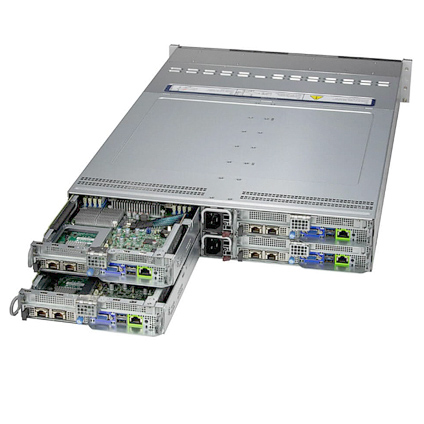

The Supermicro BigTwin SuperServer 221BT-HNTR is a 28.75" depth 2U 4-nodes high performance rackmount server. Each nodes supports dual 4th/5th Gen Intel Xeon Scalable Processor, 16x DIMM slots supports up to 4.0TB ECC DDR5 RDIMM memory. The Supermicro Server 221BT-HNTR comes with 24x hot-swap 2.5" NVME/SATA drive bays, is equipped with 3000W redundant titanium level power supply.
