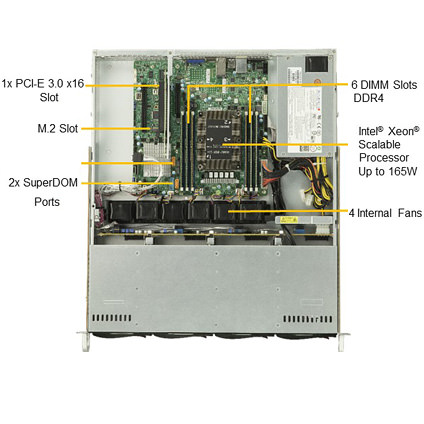

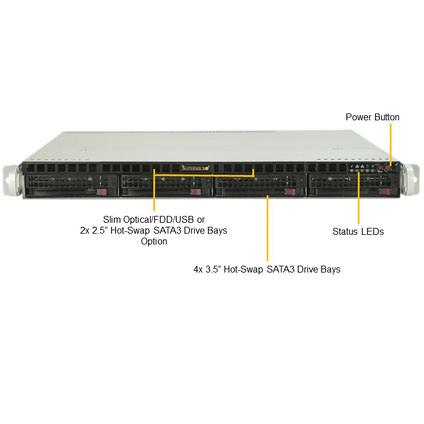

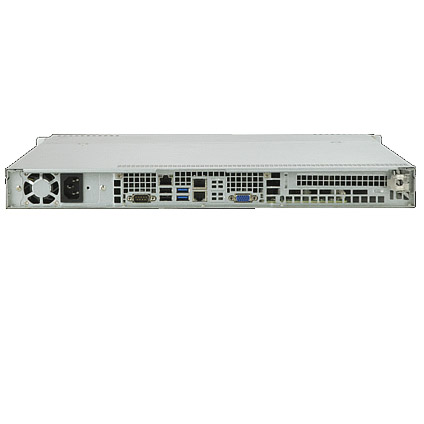

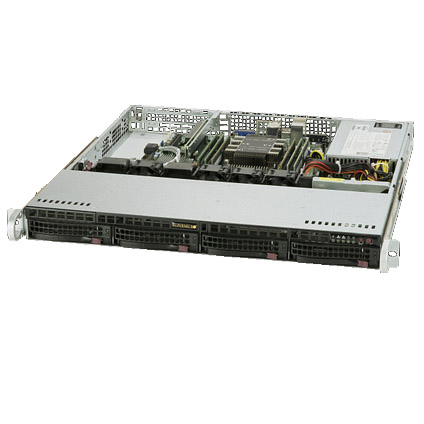

Supermicro SuperServer 5019P-M w/ 4x 3.5" SATA Drive Bays

Features:


Web Hosting, VM
Compact Network Appliance
  • 1U Rackmount Server
  • Single Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
  • Intel® C621 Express Chipset
  • Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
  • 4x 3.5" Hot-swap SATA3 Drive Bays with RAID
  • 1x Slim DVD-ROM Drive(Optional)
  • 1x PCI-E 3.0 x16 (FH, HL) Slot
    1x M.2 Slot
  • 2x 1GbE with Marvell® 88E1512
  • 1x VGA, 2x COM, 5x USB 3.0, 6x USB 2.0
  • 6x 40mm PWM Cooling Fans
  • 350W High-efficiency Power Supply, Platinum Level
  • 19.8" Depth Rack Mount Chassis

The Supermicro 5019P-M 19.8" short depth 1U Rackmount server features Intel® Xeon® Scalable Processor, supports up to 768GB DDR4 ECC 3DS LRDIMM Memory, built-in two Gigabit Ethernet ports. The Supermicro SuperServer 5019P-M comes with four 3.5" hot-swap drive bays, six 40mm PWM cooling fans, and is equipped 350W high-efficiency power supply.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11SPM-F Motherboard


  • Supermicro X11SPM-F Motherboard
  • Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 24GB(6x 4GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit LAN, 1x IPMI LAN
  • 350W Power Supply, Platinum Level High-efficiency

Barebone Only:

$745.00

Configured:

$1,665.00

Customize
