Supermicro SuperServer 5019P-WT w/ 4x 3.5" SATA Drive Bays

Features:


DB Processing & Storage
Data Center Applications
Firewall Applications
  • 1U Rackmount Server
  • Single Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors
  • Intel® C622 Express Chipset
  • Up to 768GB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 6x DIMM slots
  • 4x 3.5" Hot-swap SATA3 Drive Bays with SES2
  • Slim DVD-ROM Drive(Optional)
  • 2x PCI-E 3.0 x16 (FHHL) Slots
    1x PCI-E 3.0 x8 (LP) Slot
    M.2 mini-PCI-e Support
  • 2x 10GBase-T ports with Intel X772 + X557
  • 1x VGA, 2x COM, 2x USB 3.0, 2x USB 2.0
  • 5x 40mm Counter-rotating PWM Fans
  • 600W Multi Output Power Supply, Platinum Level High-efficiency
  • 25.6" Depth Rack Mount Chassis

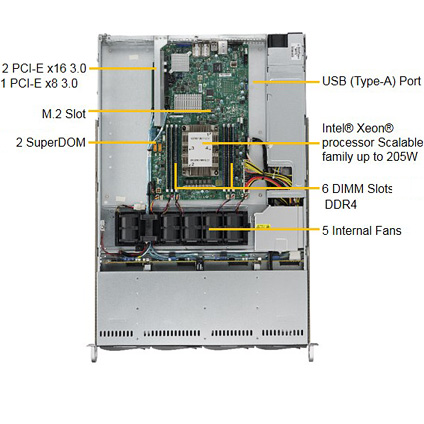

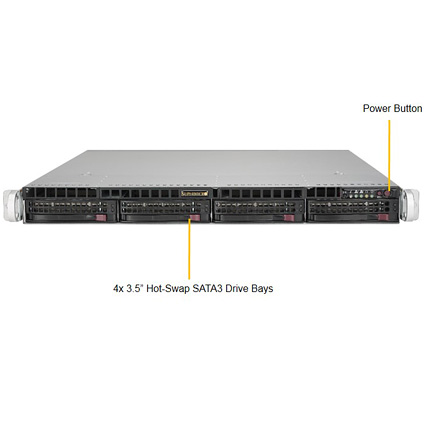

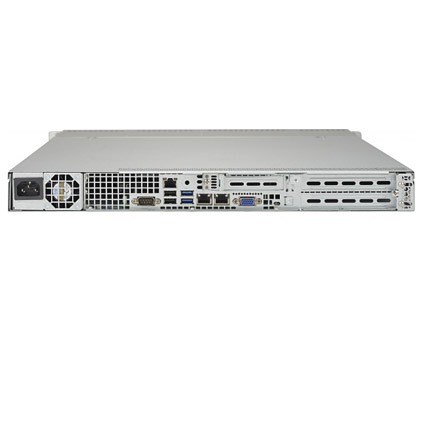

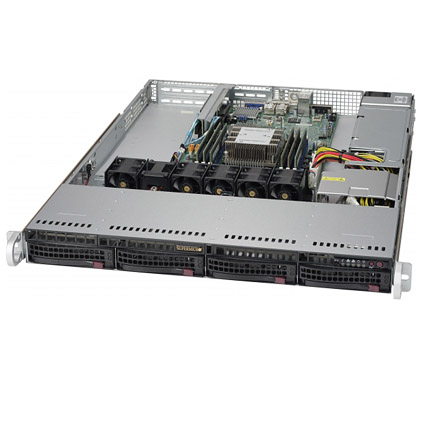

The Supermicro 5019P-WT 25.6" depth 1U Rackmount server features Intel® Xeon® Scalable Processor, supports up to 768GB DDR4 ECC 3DS LRDIMM Memory, built-in two 10GBase-T ports and IPMI LAN port. The Supermicro Server 5019P-WT comes with four 3.5" hot-swap drive bays, is equipped with five 40mm counter-rotating PWM fans, and 600W high-efficiency power supply.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11SPW-TF Motherboard


  • Supermicro X11SPW-TF Motherboard
  • Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C622 Chipset
  • 24GB(6x 4GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T Ethernet Ports, 1x IPMI LAN
  • 600W Multi Output Power Supply, Platinum Level High-efficiency

Barebone Only:

$915.00

Configured:

$1,785.00

Customize
