Supermicro SuperServer 6019P-MT w/ 4x 3.5" Drive Bays


Data Center Optimized, Web Server, Enterprise Server, Managed Hosting, Short Depth
  • 1U Rackmount Server
  • Dual Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 1.0TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots

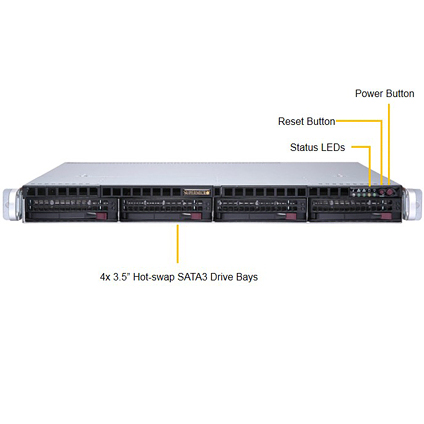

  • 4x 3.5" Hot-swap SATA3 Drive Bays
  • 1x Slim DVD-ROM Drive(Optional)
  • 1x PCI-E 3.0 x8 (FHHL) Slot, 1x M.2 Slot
  • 2x GbE LAN ports via Marvell 88E1512
    IPMI 2.0 + KVM with Dedicated LAN
  • 2x SuperDOM (Disk on Module) Ports
  • 1x VGA, 2x USB 2.0 (Rear)
  • 4x 40mm Cooling Fans
  • 500W High-efficiency Platinum Level Power Supplies /li>
  • 19.98" Depth Rack Mount Chassis

The Supermicro 6019P-MT 19.98" short depth 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 1.0TB DDR4 ECC 3DS LRDIMM Memory, built-in two gigabit LAN. The Supermicro SuperServer 6019P-MT comes with four 3.5" hot-swap drive bays, four 40mm cooling fans, and is equipped with 500W High-efficiency platinum Level power supply.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DPL-i Motherboard

  • Supermicro X11DPL-i Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit LAN, 1x IPMI LAN
  • 500W Power Supply, Platinum Level High-efficiency

Barebone Only:
