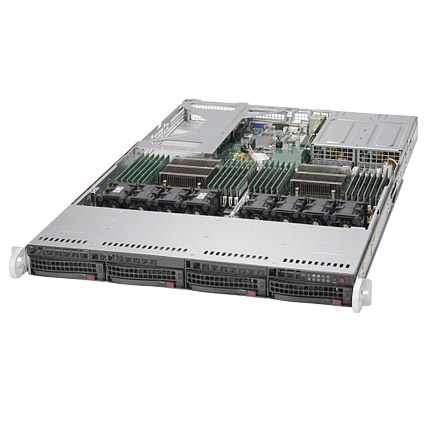

Supermicro Ultra SuperServer 6019U-TR25M w/ Two 25GbE SFP28 Ethernet LAN Ports

Features:


Virtualization
Cloud Computing
High End Enterprise Server
  • 1U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset

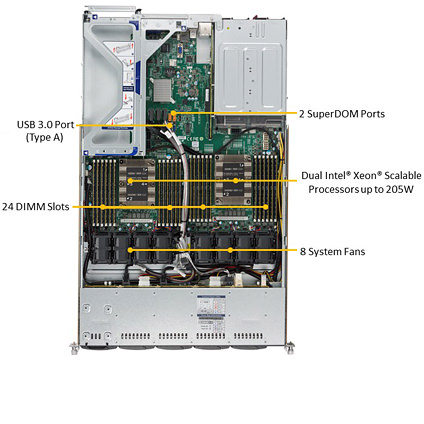

  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

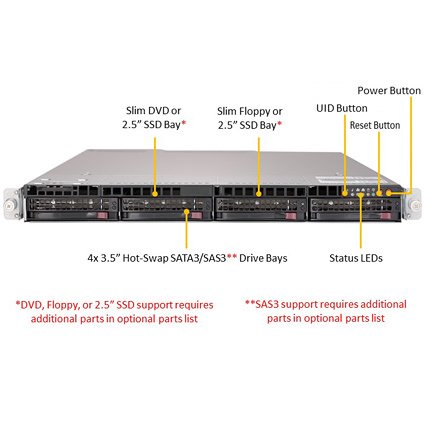

  • 4x 3.5" Hot-swap SATA3 Drive Bays (Optional SAS3 via Add-on Card)
  • 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
    2x PCI-E 3.0 x8 Low-profile Slots (1 Internal)
  • 2x 25GbE SFP28 Ethernet LAN Ports
  • 8x Heavy Duty Fans with Optimal Speed Control

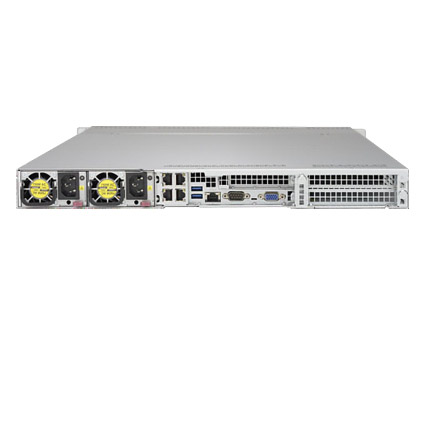

  • 750W Redundant Platinum Level (94%+) Power Supplies
  • 29" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 6019U-TR25M is an 29" depth 1U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM Memory. Supports two 25GbE SFP28 Ethernet ports via AOC-URN4-M2TS-O add-on card. The 6019U-TR25M 1U Rackmount server comes with four 3.5" hot-swap drive bays, is equipped with eight heavy duty fans, and 750W redundant power supply.


Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Base Configurations

1U Supermicro Rack Mount Server With X11DPU Motherboard


  • Supermicro X11DPU Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 25GbE SFP28 Ethernet Ports via AOC-URN4-M2TS-O Add-on Card (Mellanox ConnectX-4 Lx EN)
  • 750W Redundant 80 Plus Platinum Power Supply

Configured:

$3,245.00

Customize
