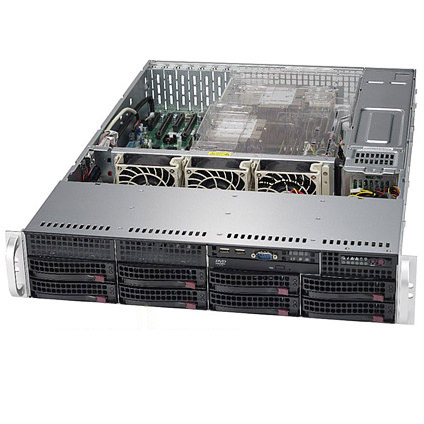

Supermicro SuperServer 6029P-TRT w/ 8x 3.5" SATA3 Drive Bays 2x 10GBase-T LAN Ports

Features:


Cloud and Virtualization Needs
Compute Intensive Application
Database Processing and Storage
High Availability Storage
Hosting & Application Delivery
  • 2U Rackmount Server

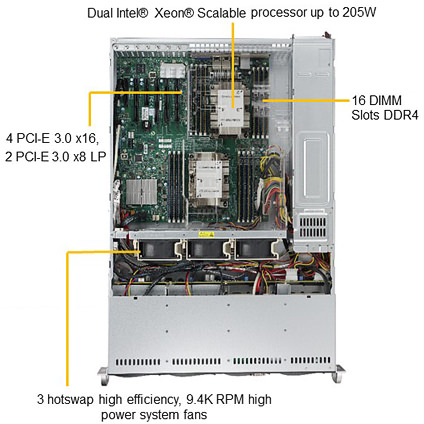

  • Dual Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots, Supports Intel Optane Memory NVDIMM

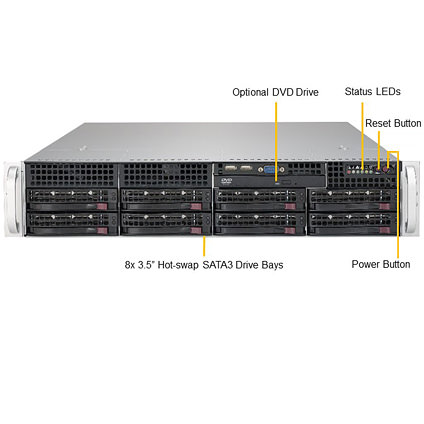

  • 8x 3.5" Hot-swap SATA3 Drive Bays; RAID 0, 1, 5, 10
  • Optional Support: 2x Fixed 2.5" NVMe/SSD/HDD
  • 1x DVD-ROM Drive Bay (Optional)
  • 4x PCI-E 3.0 x16 Low-profile Slots
    2x PCI-E 3.0 x8 Low-profile Slots
  • 1x M.2 Slot Support
  • 2x 10GBase-T LAN Ports with Intel® X722
  • 3x 80mm Heavy Duty PWM Fans
  • 800W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 25.5" Depth Rack Mount Chassis

The Supermicro Server 6029P-TRT 25.5" depth 2U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, built-in two 10GBase-T Ethernet LAN ports. The Supermicro SuperServer 6029P-TRT comes with eight 3.5" hot-swap drive bays, two fixed 2.5" NVMe/SSD/HDD bays, three 80mm hot-swap PWM fans, and is equipped with 800W redundant Titanium level power supply.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPi-NT Motherboard


  • Supermicro X11DPi-N Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C621 Chipset
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit Ethernet Ports, 1x IPMI LAN
  • 800W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$1,425.00

Configured:

$2,705.00

Customize
