Supermicro BigTwin SuperServer 621BT-DNTR

Features:


Hyperconverged Infrastructure
Scale-Out Object Storage
Back-up & Recovery

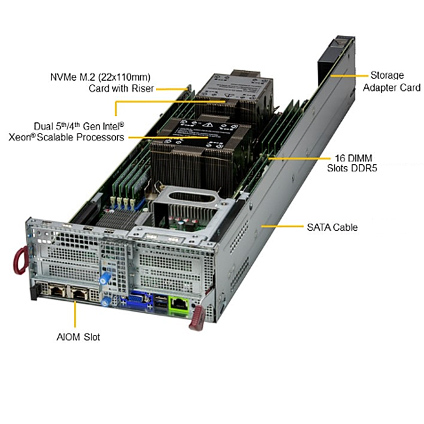

Two Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 Chipset
  • 16x DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600

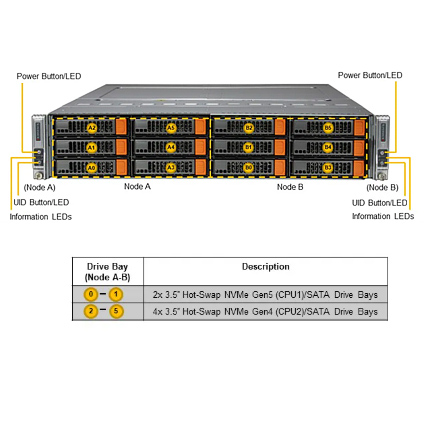

  • 6x Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVME/SATA and 4x PCIe 4.0 NVME/SATA)

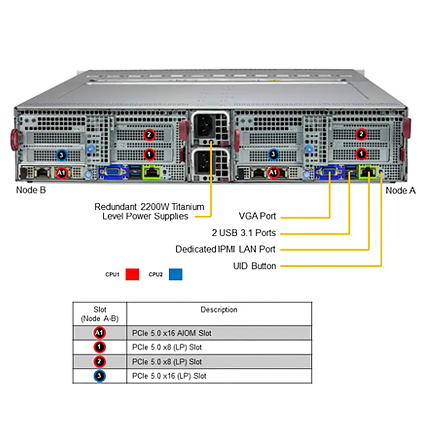

  • 1x PCI-E 5.0 x16 (LP) Slot, 2x PCI-E 5.0 x8 (LP) Slot;
    Tool-less support
    Internal PCI-E 4.0 x8 for 2x M.2 NVMe Support Onboard
    Optional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
  • Liquid Cooling Support
    4x cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
  • Network connectivity via AIOM (OCP 3.0 compliant)
  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • 30.5" Depth Rack Mount Chassis

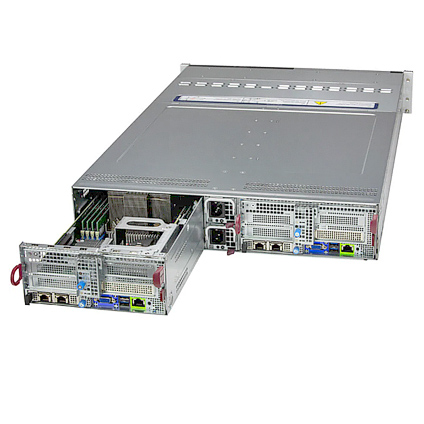

The Supermicro BigTwin SuperServer 621BT-DNTR is a 30.5" depth 2U 2-nodes high performance rackmount server. Each nodes supports dual 4th/5th Gen. Intel Xeon Scalable Processor, 16x DIMM slots supports up to 4.0TB ECC DDR5 RDIMM memory. The Supermicro Server 621BT-DNTR comes with 12x hot-swap 3.5" NVME/SATA drive bays, is equipped with 2200W redundant titanium level power supply.
