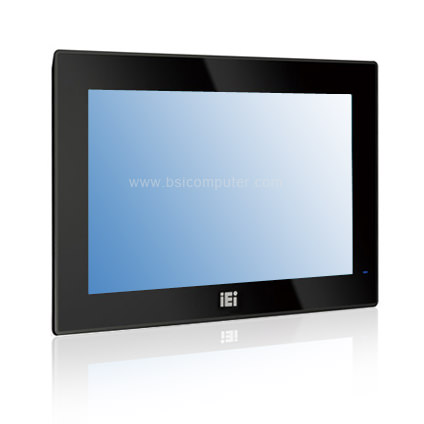

AFL3-08A-BT 8.4" Fanless Panel PC

Features:

  • Industrial Interactive Panel PC, IP64 Compliant Front Panel
  • 8.4" 800 x 600 450nits Resistive Touchscreen, Projected Capacitive Touchscreen is Optional
  • Intel® Celeron® J1900 2.0 GHz Quad-core Processor
  • 1x 204-pin DDR3L SO-DIMM Memory (Max. 8GB)
  • Built-in 802.11 a/b/g/n/ac Wireless Module
  • Magnetic Card Reader and Barcode Scanner (Optional)
  • Built-in 2-Megapixel Camera with Low Light Function, Digital Microphone, and Internal Speakers
  • One mSATA Slot
  • 9 V ~ 30 V Wide Range DC Input with Lockable DC Jack
  • Selectable AT/ATX Power Mode
  • Mounting Kit Supports Wall, Stand, Arm VESA 75mm x 75mm (Optional)

The AFL3-08A-BT is an HD Panel PC with a 7-inch 1024 x 600 LCD touch screen. A fan-less cooling design generates no noise and its small foot print (190.9 x 127.3 x 43.4 mm) make it adequate for enclosed spaces and anywhere debris is known to clog fans. This Panel PC can be used in landscape and portrait screen modes to support different user applications. The front panel is compliant with IP65 protection standards. There is 2GB DDR3L RAM Onboard along with an Intel Celeron N2807 dual core 1.58 GHz.

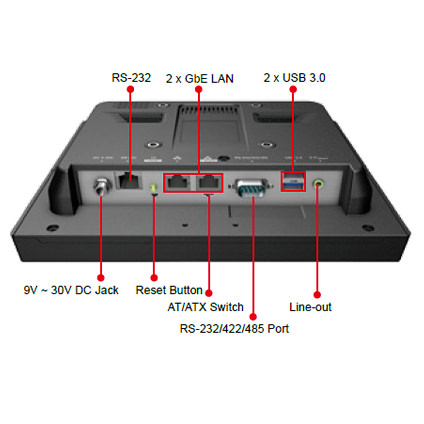

Power requirements of the AFL3-08A-BT is 9V~30V wide range DC power input and the operating temperature is from -20°C~50°C with ambient airflow. The I/O consist of two RS-232 COM port, two USB 3.0 along with two RJ-45 Gigabit Ethernet ports. There is also built-in 802.11abgnac wireless LAN. The AFL3-08A-BT can be mounted via Wall, Panel, Stand and Rack Mounting (VESA 75 mm x 75 mm).

Barebone & Base Configurations

AFL3-08A-BT 7" Fanless Touch Panel PC


  • 8.4" 800 x 600 Resistive Touchscreen
  • 8.4" 800 x 600 Projected Capacitive Touchscreen (Optional)
  • Intel® Celeron® Processor J1900 (2M Cache, 2.0 GHz)
  • 2GB DDR3L SO-DIMM Memory
  • 16GB Flash Disk; MSATA SATAIII Interface , MLC, 32°F~158°F
  • 1 x RS-232 (RJ45), 1 x RS-232/422/485 (DB9)
  • 2 x Gigabit Ethernet Ports
  • 2 x USB 3.0, 2 x USB 2.0
  • Built-in 802.11 a/b/g/n/ac Wireless Module
  • Magnetic Card Reader and Barcode Scanner (Optional)
  • 36W 90~264VAC Power Adapter

Barebone Only:

$729.00

Configured:

$769.00

Customize
