AFL3-W07A-BT - 7" HD Fanless Panel PC

Features:

  • 7" 1024 x 600 (16:9) 500nits Touch Screen, with LED Backlight
  • Flat Screen with 6H Projected Capacitive Touch Supports Multi-touch Function
  • Intel® Celeron® N2807 1.58 GHz Dual-core Processor
  • 2GB DDR3L Memory Onboard
  • Built-in 802.11 a/b/g/n/ac Wireless Module
  • Mifare 13.56 MHz Card Reader (Optional)
  • Built-in 2W Internal Speakers
  • One mSATA Slot
  • IP65 Compliant Front Panel
  • Mounting Kit Supports Wall, Stand, Arm VESA 75mm x 75mm (Optional)

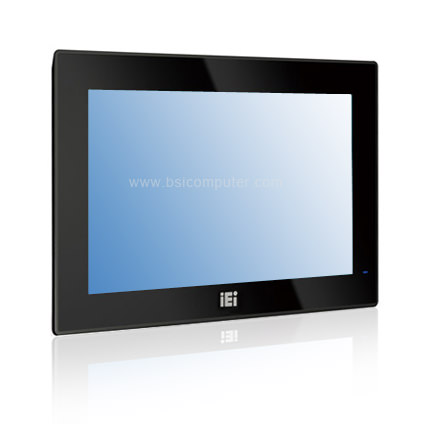

The AFL3-W07A-BT is a 7" 1024 x 600 pixels display fanless touch Panel PC with Intel Celeron® N2807 dual core processor that comes with 1MB L2 cache and 1.58 GHz base clock. The SoC has 2.16 GHz maximum burst frequency, which pumps up its frequency to complete tasks faster. The AFL3-W07A-BT is secured in light weight plastic housing with IP65 certified front panel. With built-in Wi-Fi, 2GB DDR3L Onboard RAM, two COM ports, dual Gigabit Ethernet controller and 6H projected capacitive touch, it is ideal for factory HMI and home automation terminal.

Barebone & Base Configurations

AFL3-W07A-BT - 7" Fanless Touch Panel PC


  • 7" 1024 x 600 Projected Capacitive Touchscreen, LED Backlight
  • Intel® Celeron® Processor N2807 (1M Cache, 1.58 GHz)
  • 2GB DDR3L SO-DIMM Memory
  • 16GB Flash Disk; MSATA SATAIII Interface , MLC, 32°F~158°F

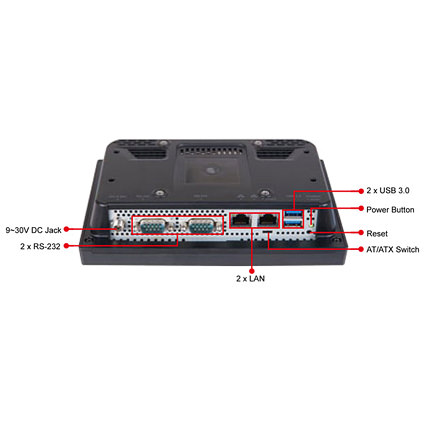

  • 2 x RS-232 (DB9)
  • 2 x Gigabit Ethernet Ports
  • 2 x USB 3.0
  • Built-in 2W Internal Speaker
  • Built-in 802.11 a/b/g/n/ac Wireless Module
  • Mifare 13.56 MHz Card Reader (Optional)
  • IP 65 Compliant Front Panel
  • 36W 90~264VAC Power Adapter

Barebone Only:

$549.00

Configured:

$589.00

Customize
