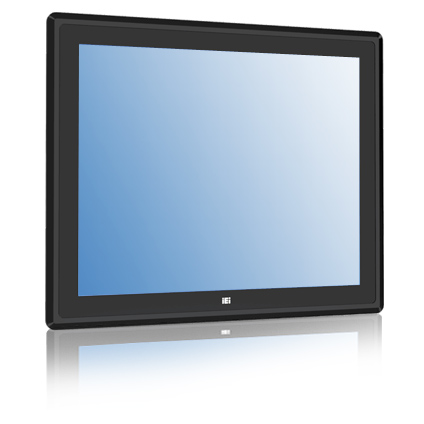

PPC2-C150-ADLP 15" Heavy Industrial Panel PC
Features:
- 15” 1280 x 1024 450 nits TFT LCD with Projected Capacitive Touch Screen
- Anti-UV / Anti-glare Coating, Support Gloves
- 12th Gen Intel® Core™ i7/i5/i3 Processor
- Dual-channel 8GB LPDDR4x on-board Memory
- 1 x M.2 M Key 2242 NVMe (PCIe Gen4 x 4)
- 1 x M.2 M Key 2280 NVMe (PCIe Gen4 x 4)
- 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)

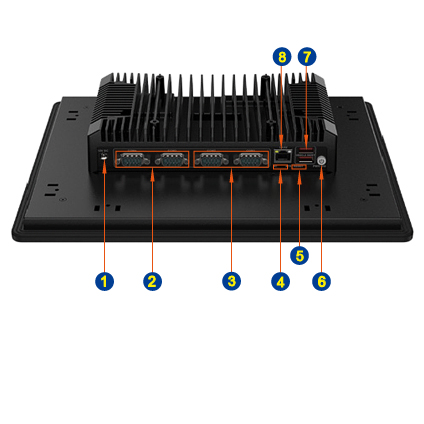

- 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
- 4 x USB 3.2, 1 x USB 2.0
- 2 x 2.5GbE LAN Ports
- VESA 100, Panel, Wall, Rack, Stand and Arm
The PPC2-C150-ADLP fanless panel computer embodies cutting-edge technology, leveraging the Intel Alder Lake-P Platform for robust and efficient performance. Boasting onboard 8GB RAM, it eliminates concerns about vibration issues, ensuring stability in demanding environments. Its 4:3 display with a resolution of 1024 x 768 provides clear visuals, suitable for various industrial applications. Moreover, with an IP65-compliant front panel, this panel computer is adept at withstanding dust and water ingress, enhancing durability and reliability in harsh conditions, making it a dependable choice for rugged environments where performance and resilience are paramount.
Barebone & Base Configurations
- 15” 1280 x 1024 450 nits TFT LCD Display with Projected Capacitive Touch Screen
- 12th Generation Intel® Core™ i3-1220P on-board processor
- 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
- 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
- 8GB LPDDR4x on-board Memory
- 250GB M.2 Solid State Drive
- 2 x RS-232/422/485, 2 x RS-232
- 4 x USB 3.2, 1 x USB 2.0
- 1 x M.2 M Key 2242 (PCIe Gen4 x 4), 1 x M.2 E-Key 2230 (Gen3 x1 + CNVIo + USB 2.0)
- 1 x HDMI
- TPM
- 2 x 2.5 GbE LAN
- 12V DC Power Input
