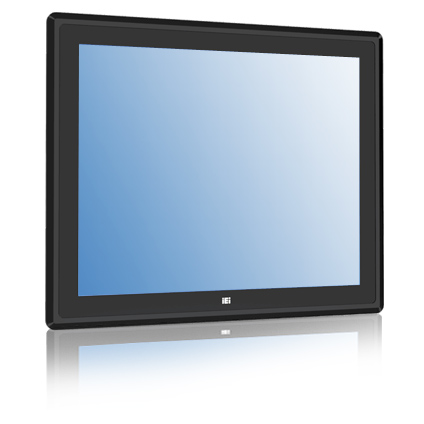

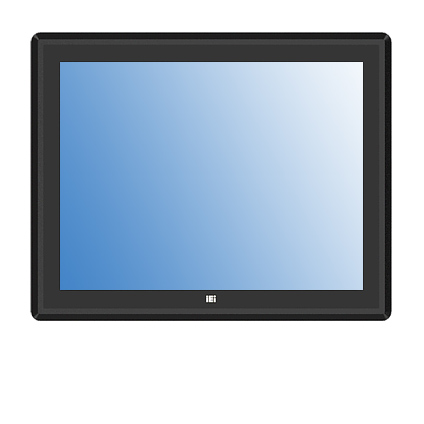

PPC2-C190-ADLP 19" Heavy Industrial Panel PC

Features:

  • 19” 1280 x 1024 450 nits TFT LCD with Projected Capacitive Touch Screen
  • Anti-UV / Anti-glare Coating, Support Gloves
  • 12th Gen Intel® Core™ i7/i5/i3 Processor
  • Dual-channel 8GB LPDDR4x on-board Memory
  • 1 x M.2 M Key 2242 NVMe (PCIe Gen4 x 4)
  • 1 x M.2 M Key 2280 NVMe (PCIe Gen4 x 4)
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)

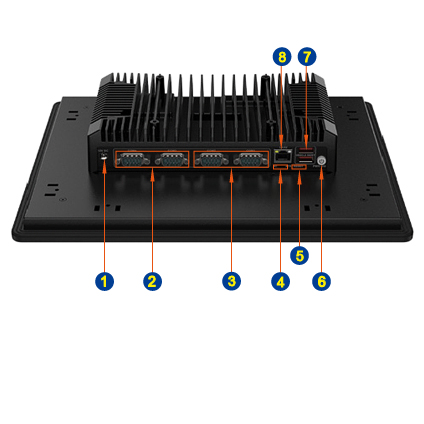

  • 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9), 4 x USB 3.2, 1 x USB 2.0, 2 x 2.5GbE LAN Ports
  • VESA 100, Panel, Wall, Rack, Stand and Arm

The PPC2-C190-ADLP fanless panel computer is a powerhouse of performance, leveraging the cutting-edge Intel Alder Lake-P Platform for unparalleled efficiency. With 8GB of onboard RAM, vibration concerns are a thing of the past, ensuring stability in the most demanding environments. Its 1280 (W) x 1024 (H) resolution offers clear visuals on a 19” LCD display, presenting a 5:4 aspect ratio ideal for various industrial applications. Additionally, boasting an IP64-compliant front panel, this computer is resilient against dust and splashes, enhancing durability. Featuring a touch controller with projected capacitive technology (EETI 80), it delivers responsive touch capabilities, providing an intuitive interface for seamless interaction in challenging working environments.

Barebone & Base Configurations

PPC2-C190-ADLP Heavy Industrial Panel PC

  • 19" 1280 x 1024 450 nits TFT LCD Display with Projected Capacitive Touch Screen
  • 12th Generation Intel® Core™ i3-1220P on-board processor
  • 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
  • 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
  • 8GB LPDDR4x on-board Memory
  • 250GB M.2 Solid State Drive
  • 2 x RS-232/422/485, 2 x RS-232
  • 4 x USB 3.2, 1 x USB 2.0
  • 1 x M.2 M Key 2242 (PCIe Gen4 x 4), 1 x M.2 E-Key 2230 (Gen3 x1+CNVIo+USB 2.0)
  • 1 x HDMI
  • TPM
  • 2 x 2.5 GbE LAN
  • 12V DC Power Input

Barebone Only:

$1,405.00

Configured:

$1,479.00

Customize
