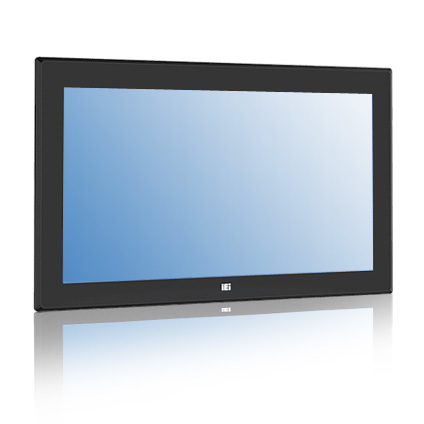

PPC2-CW185-ADLP 18.5" Heavy Industrial Panel PC
Features:
- 18.5” 1920 x 1080 350 nits TFT LCD with Projected Capacitive Touch Screen
- Anti-UV / Anti-glare Coating, Support Gloves
- 12th Gen Intel® Core™ i7/i5/i3 Processor
- Dual-channel 8GB LPDDR4x on-board Memory
- 1 x M.2 M Key 2280 NVMe (PCIe Gen4 x 4), 1 x M.2 M Key 2242 NVMe (PCIe Gen4 x 4)
- 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)

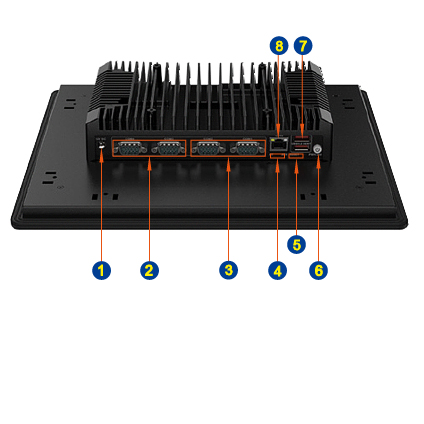

- 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
- 4 x USB 3.2, 1 x USB 2.0, 2 x 2.5GbE LAN Ports
- Mounting: VESA 100, Panel, Wall, Rack, Stand and Arm
The PPC2-CW185-ADLP is a powerful and versatile panel computer designed for industrial applications, combining a large 18.5-inch TFT LCD display with robust features. The 1920 x 1080 resolution and 350 nits brightness of the screen, coupled with a Projected Capacitive Touch Screen featuring anti-UV and anti-glare coating, ensure a clear and interactive user experience, even with glove usage. Driven by the 12th Gen Intel® Core™ i7/i5/i3 Processor, this panel computer delivers high-performance computing for demanding tasks. With dual-channel 8GB LPDDR4x on-board memory, it facilitates efficient multitasking. Storage options include a 1 x M.2 M Key 2280 NVMe (PCIe Gen4 x 4) slot, a 1 x M.2 M Key 2242 NVMe (PCIe Gen4 x 4) slot, and a 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0) slot. The device offers extensive connectivity with 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9), 4 x USB 3.2, 1 x USB 2.0, and 2 x 2.5GbE LAN ports. Its flexible mounting options, including VESA 100, panel, wall, rack, stand, and arm, make it adaptable to various industrial environments, ensuring optimal functionality and durability.
Barebone & Base Configurations
- 18.5” 1920 x 1080 350 nits TFT LCD Display with Projected Capacitive Touch Screen
- 12th Generation Intel® Core™ i3-1220P on-board processor
- 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
- 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
- 8GB LPDDR4x on-board Memory
- 250GB M.2 Solid State Drive
- 2 x RS-232/422/485, 2 x RS-232
- 4 x USB 3.2, 1 x USB 2.0
- 1 x M.2 M Key 2242 (PCIe Gen4 x 4), 1 x M.2 E-Key 2230 (Gen3 x1+CNVIo+USB 2.0)
- 1 x HDMI
- TPM
- 2 x 2.5 GbE LAN
- 12V DC Power Input
