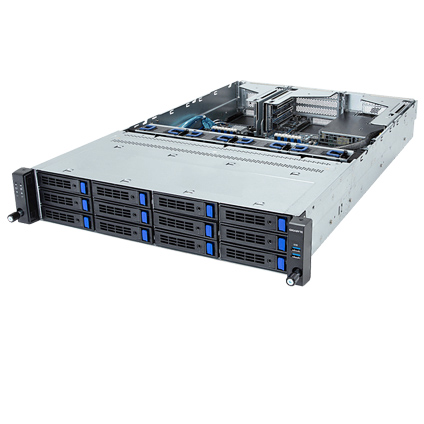

Gigabyte R263-S33 (rev. AAF1) 4th Gen Intel Xeon 2U 12-Bay SATA/SAS Rack Server
Features:
- 2U Rack Mount Server
- Supports up to 3 x Dual slot Gen5 GPU cards
- Single socket LGA 4677, 4th Gen Intel® Xeon® Scalable Processors
- Intel® Xeon® CPU Max Series

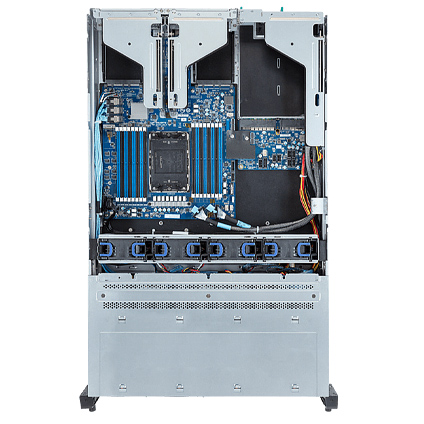

- 8-Channel RDIMM DDR5 per processor, 16 x DIMMs
- Dual ROM Architecture

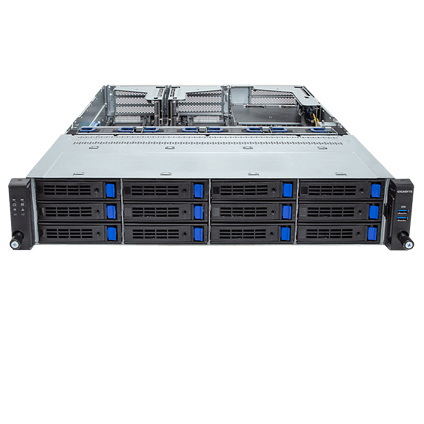

- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x OCP 3.0 Gen5 x16 slots
- Front I/O Ports: 2 x USB 3.2

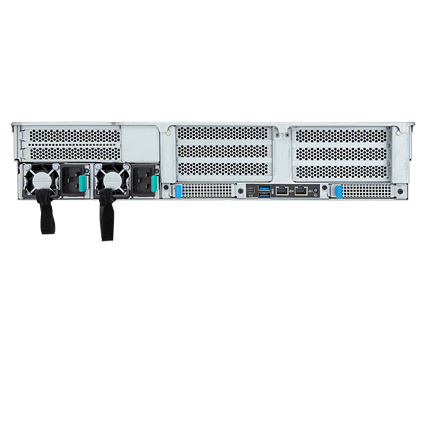

- Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
- 4 x 80x80x38mm 18,300 RPM cooling fans
- 2400W Redundant 80 Plus platinum power supplies
- Dimension: 17.24" x 28" x 3.45" (438mm x 710mm x 87.5mm)
The Gigabyte R263-S33 (rev. AAF1) is a versatile 2U server powered by 4th Gen Intel® Xeon® Scalable Processors, 16x DIMMs 8-Channel RDIMM DDR5 memory. For storage capabilities the R263-S33 (REV. AAF1) has 12 x 3.5"/2.5" SATA/SAS hot-swap drive bays. For expansion purposes there are 3 x FHFL PCIe 5.0 x16 slots that supports up to 3 x dual slot GPU cards, and 2 x OCP 3.0 Gen5 x16 slots. The Gigabyte Server R263-S33 (rev. AAF1) is equipped with 4 x 80mm 18,300 RPM system fans, and 2400W redundant 80 Plus platinum power supplies.
Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.
Base Configurations
