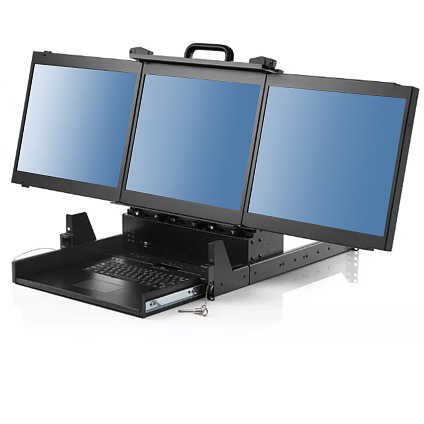

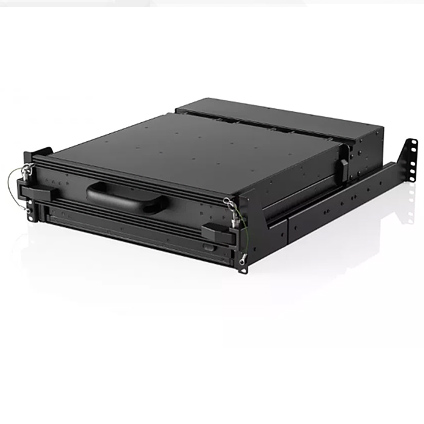

RMK-TU19 Triple Screen 3U Rackmount LCD Keyboard Drawer

RMK-TU19 Triple Screen 3U Rackmount LCD Keyboard Drawer

Features:

  • 3U Rack Mount LCD Keyboard Drawer
  • 3 x 19" 1280x1024 SVGA LCD Monitors
  • Each Monitor has an Independent OSD Control, Allowing Independent Panel Control or Control of All Panels Simultaneously
  • 3 Ports
  • Video Input: VGA, DVI-D, DisplayPort
  • 2 x USB Ports
  • 101 Keys Backlit Keyboard, Adjustable Brightness, Resistive Touch Pad
  • Customization: Military Connectors, Custom I/O and More

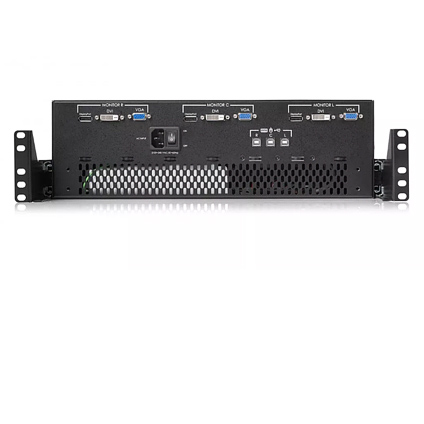

The RMK-TU19 keyboard drawer is a versatile and robust solution designed to streamline workspace efficiency. Featuring three 19" SXGA displays with a resolution of 1280 x 1024 each, it offers expansive screen real estate for enhanced productivity. The displays tilt approximately 15° from the vertical, ensuring ergonomic viewing angles for user comfort. With a variety of connectivity options, including 1 VGA, 1 DVI, 1 DP, and 2 USB ports, it facilitates seamless integration with peripheral devices. The power supply supports 115/230 VAC, 50/60 Hz, with a maximum output of 75W, ensuring reliable performance. The keyboard boasts 101 backlit keys with a touchpad and adjustable brightness, complemented by a resistive touchpad for intuitive navigation. With dimensions measuring 3U height (5.13"), 19" width, and 25.8" depth, and a weight of approximately 58 lbs (26kg), it offers sturdy construction suitable for industrial environments. Whether in command centers, control rooms, or other demanding settings, the RMK-TU19 keyboard drawer enhances workflow efficiency and user experience.

Base Configurations

RMK-TU19 Dual Screen Keyboard Drawer


  • 3 x 19" 1280 x 1024 FHD LCD Display
  • Displays Tilt 15° From Vertical View Angle

    3 Port s

  • Video Input: VGA, DVI-D, DisplayPort
  • 101 Keys Backlit Keyboard, Adjustable Brightness, Resistive Touch Pad
  • 19" x 5.13" x 25.8"(W x H x D)
  • 75W 115/230 VAC Power Supply

Configured:

$5,489.00
