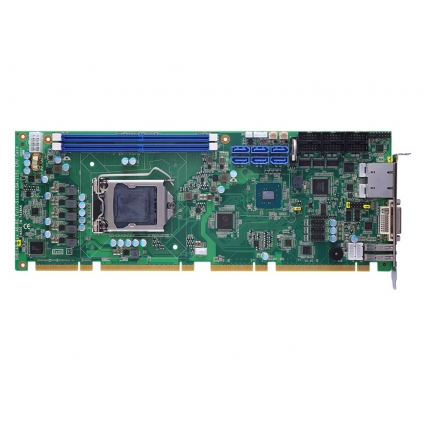

SHB140 PICMG 1.3 Full Size CPU Card

Features:

  • LGA1151 6th Generation Intel® Core i7/i5/i3 Processor
  • Intel® Q170 Chipset
  • 2x 288-pin DDR4 2133MHz DIMMs (Max. 32GB)
  • 2x Gigabit Ethernet Controller
  • 2x USB3.0 and 10x USB2.0
  • 5x RS-232, 1 x RS-232/422/485
  • 6x SATA 6Gbps Port (RAID 0, 1, 5, 10)
  • Intel® AMT 11 & TPM (Optional) Supported
  • PCIe Gen. 3 at 8GT/s Supported
  • BSI SKU# SBCQ1703AL

Base Configurations

SHB140 Full Size CPU Card

  • LGA1151 6th Generation Intel® Core i7/i5/i3 Processor
  • Intel® Q170 Chipset
  • 2x 288-pin DDR4 2133MHz DIMMs (Max. 32GB)
  • 2x Gigabit Ethernet Controller
  • 2x USB3.0 and 10x USB2.0
  • 5x RS-232, 1 x RS-232/422/485
  • 6x SATA 6Gbps Port (RAID 0, 1, 5, 10)
  • Intel® AMT 11 & TPM (Optional) Supported
  • PCIe Gen. 3 at 8GT/s Supported

Configured:

$439.00

Customize
