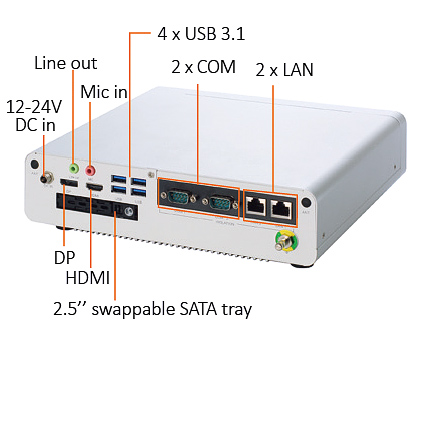

Features:

• Medical Grade Fanless Slim System with for Smart Healthcare Applications
• 8th gen Intel® Core™ i7/i5 processor, TDP 15W
• 2 x 260-pin DDR4 SO-DIMM (Max. 64GB)
• 1 x Swappable 2.5" SATA HDD Tray with Security Lock
• 1 x M.2 Key M 2280 NVMe SSD Slot
• 1 x HDMI and 1 x DisplayPort++ with 4K UHD Supported
• 2 x COM and 2 x GbE LAN with Isolation Supported
• Antimicrobial Coating Chassis (optional)

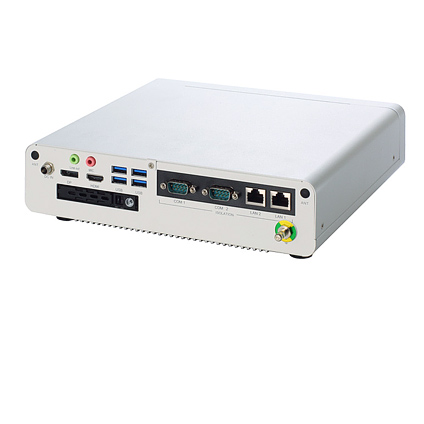

The mBOX100 medical box PC is a compact and powerful solution designed to meet the demanding requirements of healthcare environments. Equipped with an 8th gen Intel® Core™ i7/i5 processor with a low TDP of 15W, it delivers efficient performance while minimizing power consumption. With support for up to 64GB of DDR4-2400 memory across 2 SO-DIMM slots, it ensures smooth multitasking and data processing for medical applications. The inclusion of 1 HDMI port and 1 DisplayPort, both supporting 4K UHD resolution, enables high-quality imaging for medical displays and monitors. Enhanced connectivity features include 2 COM ports and 2 GbE LAN ports with isolation support, ensuring reliable communication and data security in medical settings. The swappable 2.5" SATAIII SSD tray with a security lock provides convenient and secure storage options for sensitive medical data. Additionally, an optional antimicrobial coating on the chassis helps maintain hygiene standards, making the mBOX100 an excellent choice for various healthcare applications where space-saving and performance are paramount.
