Supermicro SuperServer 1029TP-DC1R 1U 2-Node TwinPro Server

Features:


Mission-critical Applications
High Availability Storage
Appliance Platform


Two Hot-pluggable Systems (Nodes) in a 1U Form Factor. Each Node Supports the Following:

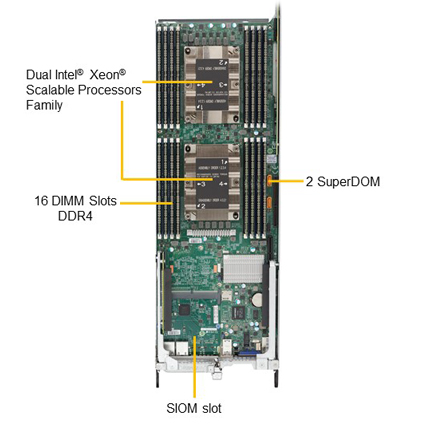

  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM Slots

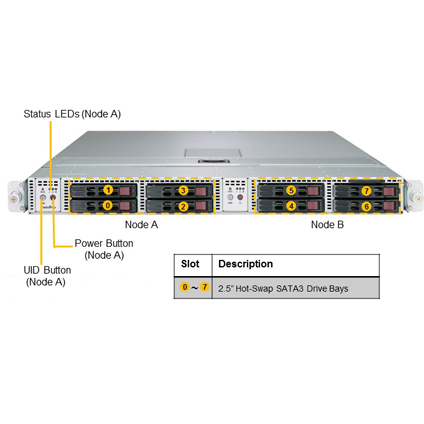

  • 4x 2.5" Hot-swap SAS3/SATA3 Drive Bays
  • Broadcom 3108 SAS3 Controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap Option
  • 2x PCI-E 3.0 x16 Slots
  • 2x SuperDOM (Disk on Module) Ports
  • Flexible Networking Support via SIOM; Dedicated IPMI 2.0 LAN
  • 3x Counter-rotating PWM Fans
  • 800W Redundant Power Supply, Titanium Level
  • 28.25" Depth Rack Mount Chassis

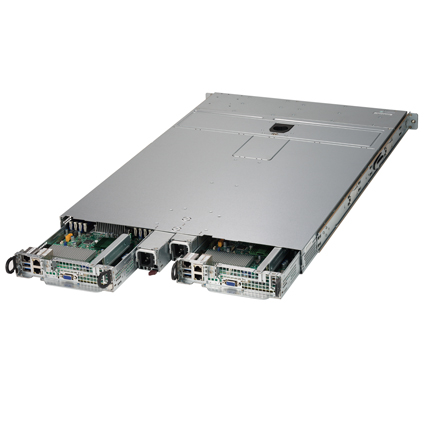

The Supermicro SuperServer 1029TP-DC1R is a 28.25" depth 1U 4-nodes high performance rackmount server. Each nodes supports dual Intel Xeon Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 1029TP-DC1R 1U Racknount Server comes with 12x hot-swap 2.5" SAS3/SATA3 drive bays w/ Broadcom 3108 SAS3 controller, three counter rotating fans, and is equipped with 800W redundant Titanium level power supply.


Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DPT-PS Motherboard


  • 2x Supermicro X11DPT-PS Motherboard
  • 4x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • 32GB(8x 4GB) DDR4 ECC Reg Memory
  • 12x 2.5" Hot-swap SAS3/SATA3 Drive Bays
  • 2x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 2x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 800W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$2,545.00

Configured:

$5,255.00

Customize
