WSX-115 High Performance Intel Xeon Tower Workstation
Features:
- High Performance Tower Workstation
- ATX / E-ATX Form Factor Motherboard
- 2 x 5.25" External Drive Bays
- 1 x 3.5" External Drive Bays
- 4 x 3.5" Fixed or Hot-swap Drive Bays (Optional, Max to 8 x 3.5" HDDs)
- 1 x 120mm Middle Fan (Optional), 2 x 80mm Rear Fans (Optional)
- Supports 8 x Full-Height Expansion Slots
- 23.7" Depth Tower Chassis
The WSX-115 is a versatile 4U workstation chassis designed for both tower and rackmount configurations, with optional rack kit accessories including ear handles, slide rails, and cable management arms (CMA). Ideal for high-performance computing, it features eight PCIe slots that support a wide range of I/O applications, including double-width GPU cards. The chassis offers flexible power supply options, accommodating both PS2 and CRPS formats. For storage, it supports both internal and external kits for 2.5" or 3.5" HDDs, making it adaptable to various data needs. Designed with usability and security in mind, it includes a toolless side cover and a secure front bezel. With lower acoustic performance, the WSX-115 is suitable for both server and workstation applications, providing quiet, efficient operation in demanding environments.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| CPU Sockets | CPU | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
|
Base Configurations

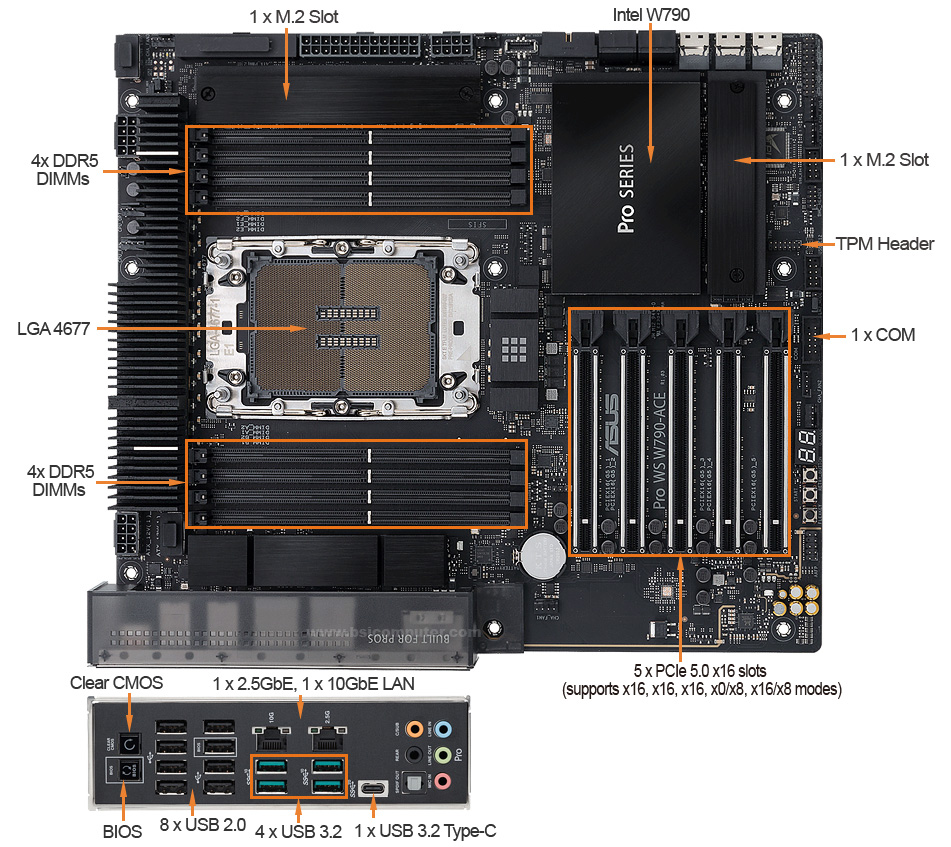

- ASUS Pro WS W790-ACE CEB Motherboard
- Intel Xeon W-3400 & W-2400 Processors
- Intel W790 Chipset
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 1 x 2.5GbE LAN, 1 x 10GbE LAN
Configured: |
$3,019.00 |
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Configured: |
$3,119.00 |
- Supermicro X13DAI-T Motherboard
- 2x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 2 x PCIe 5.0 x4 M.2 Slots
- 4 x NVMe Ports PCIe 5.0 x4 via 2 MCIO Connectors
- 5 x PCIe 5.0 x16, 1 x PCIe 5.0 x8
- 1 x TPM Header
- Built-in 2 x 10G LAN
Configured: |
$4,225.00 |
- Supermicro X13SWA-TF Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 5.0 x4 M.2 Slots
- 6 x PCIe 5.0 x16
- 1 x TPM Header
- 2 x U.2 Connector
- Built-in 1x 10GbE LAN, 1x GbE LAN (Shared IPMI)
Configured: |
$2,935.00 |

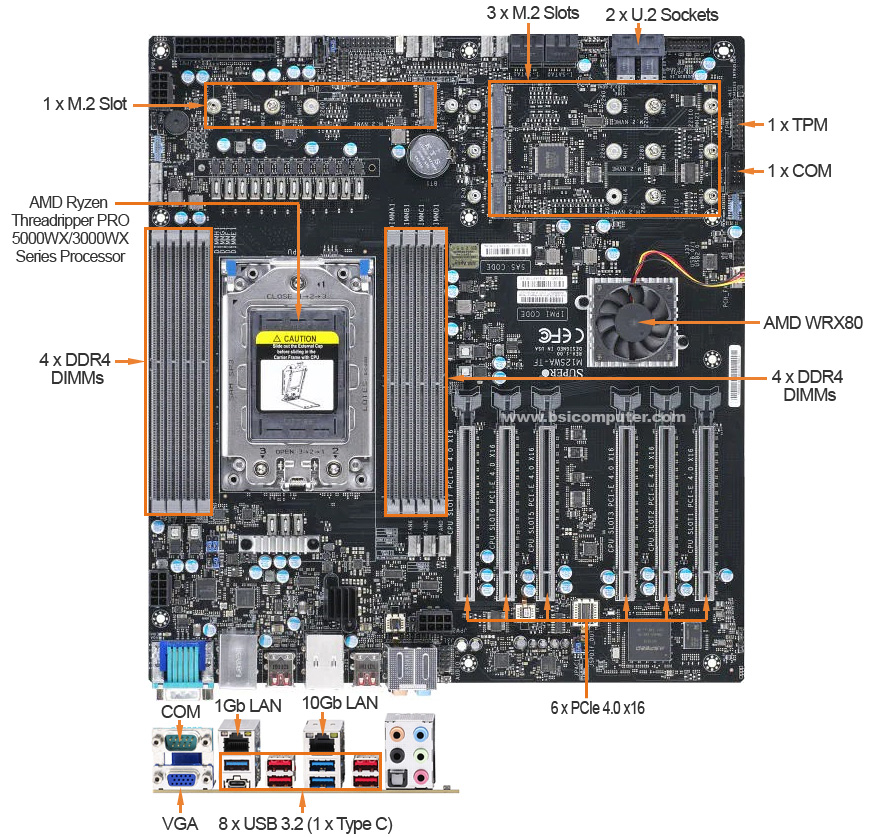

- Supermicro M12SWA-TF Motherboard
- AMD Ryzen Threadripper PRO Processors
- DDR4 ECC Registered Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 2 x U.2 Sockets
- 6 x PCIe 4.0 x16
- 1 x GbE LAN, 1 x 10GbE LAN
- 1 x TPM Header
Configured: |
$3,709.00 |
- Supermicro X13SAE-F Motherboard
- 12th Gen Intel Processor
- Intel W680 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 1 x TPM Header
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
Configured: |
$1,925.00 |
- Supermicro X12DAi-N6 Motherboard
- 2x 3rd Gen Intel Xeon Scalable Processor
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Configured: |
$3,829.00 |
W-3300 Processor
Configured: |
$2,895.00 |
