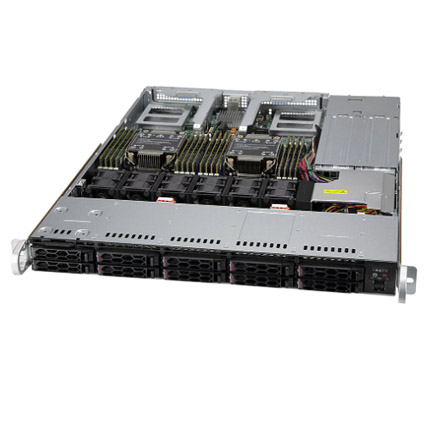

Supermicro CloudDC SuperServer 120C-TN10R

Features:


Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes
  • 1U Rackmount Server

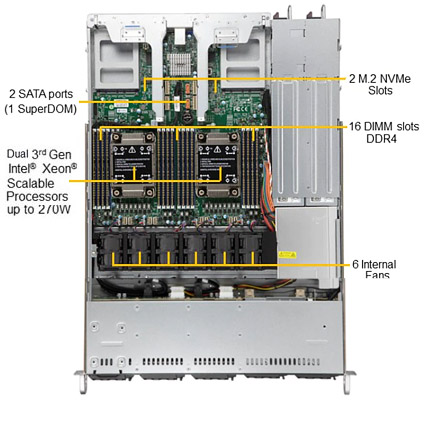

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

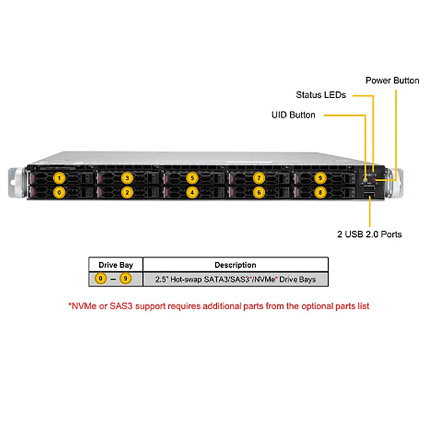

  • 10x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays

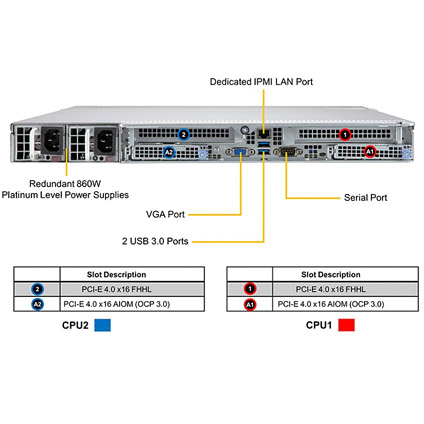

  • 2x PCI-E 4.0 x16 FHHL; 2x PCI-E 4.0 x16 AIOM (OCP 3.0); 2x PCI-E 3.0 x2 NVMe M.2
  • 1x VGA, 1x COM, 2x USB 3.0 (Rear), 2x USB 2.0 (Front)
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 6x Counter-rotating 4 cm PWM fans with optimal fan speed control, 2x air shrouds
  • 860W Redundant Platinum Power Supply
  • 23.5" Depth Rack Mount Chassis

The Supermicro SuperServer 120C-TN10R 1U 23.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 6.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots. The Supermicro Server 120C-TN10R comes with 10x 2.5" hot-swap NVMe/SATA/SAS drive bays, six 40mm counter-rotating fans, and is equipped 860W redundant platinum level power supply.
