Supermicro Ultra SuperServer 220U-MTNR

Features:


Virtualization
HPC
Cloud Computing
High End Enterprise Server
Software Defined Storage
Application Tier Service Provider
5G/Telco
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors.
  • Intel® C621A Chipset

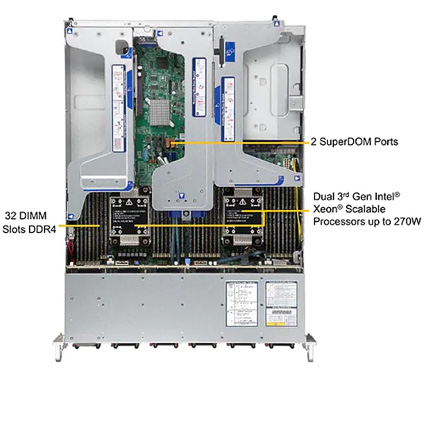

  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series

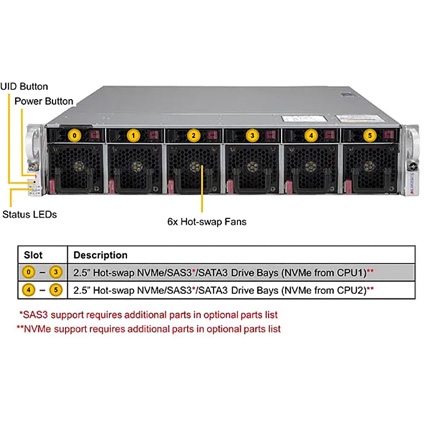

  • 6x Hot-swap 2.5'' NVMe/SATA/SAS drive bays

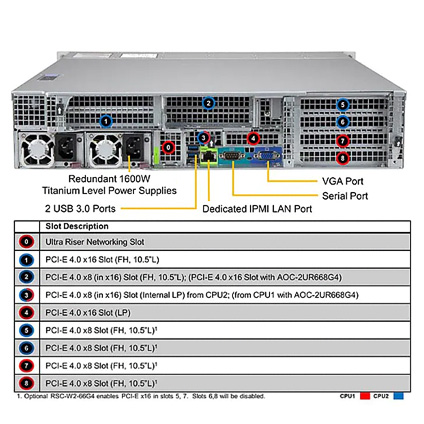

  • 1x internal PCI-E 4.0 x8 (in x16 slot, LP), 1x PCI-E 4.0 x16 (FH, 10.5"L), 1x PCI-E 4.0 x16 (LP), 5x PCI-E 4.0 x8 (FH, 10.5"L), 1x PCI-E 4.0 x8 internal LP slot
  • Flexible networking options
  • 6x 60mm Heavy duty fans with optimal fan speed control
  • 1600W Redundant Power Supply
  • 22.6" Depth Rack Mount Chassis

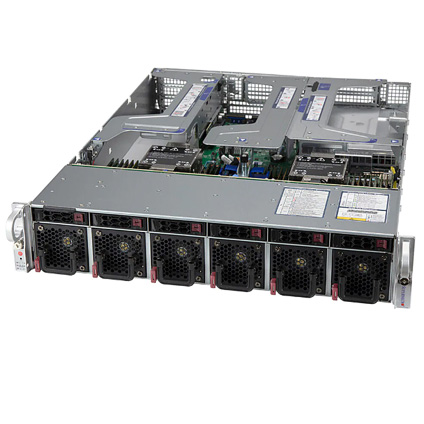

The Supermicro Ultra SuperServer 220U-MTNR 2U 22.6" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 12.0TB Memory, The Supermicro Server 220U-MTNR comes with 6x 2.5" hot-swap NVMe/SATA/SAS drive bays, 6x 60mm heavy duty fans with optimal fan speed control, and is equipped with 1600W redundant power supply.
