Supermicro SuperStorage Server 5049P-E1CR45L w/ 45x 3.5" SAS3/SATA3 Bays

Supermicro SuperStorage Server 5049P-E1CR45L w/ 45x 3.5" SAS3/SATA3 Bays


Backup Storage, Cold Storage
Database Applications
Data Warehousing, Archiving
  • 4U Rackmount Server
  • Single Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors
  • Intel® C621 Chipset
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM Slots
  • 45x Hot-swap 3.5" SAS3/SATA3 Drive Bays with SES3, SAS3 (12Gbps) via Broadcom 3008; IT Mode (AOC-S3008L-L8E)
  • 2x Rear Hot-swap 2.5" SATA Drive Bays, 2x Rear Hot-swap 2.5" SATA/NVMe Bays (Optional)
  • 2x PCI-E 3.0 x8 (in x16), 3x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 3.0 x8 (Occupied by HBA) Slots
  • 2x GbE LAN Ports via Intel i210
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x 80mm High Performance Cooling Fans
  • 1000W Redundant Power Supply, Platinum Level (94%)
  • 26" Depth Rack Mount Chassis

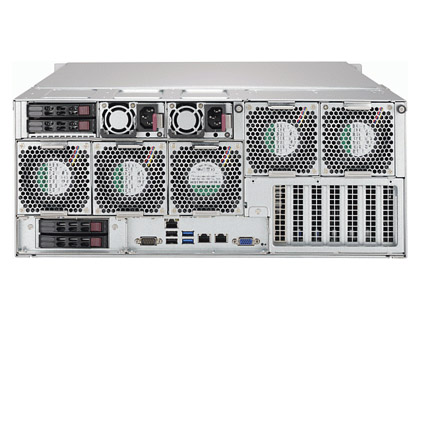

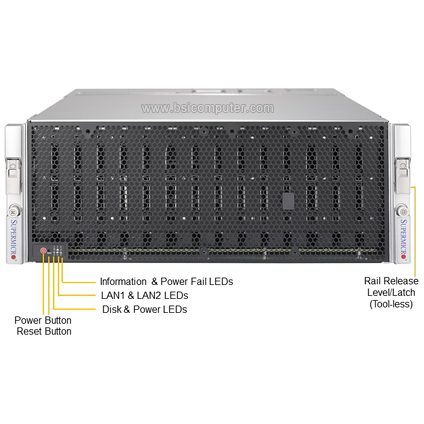

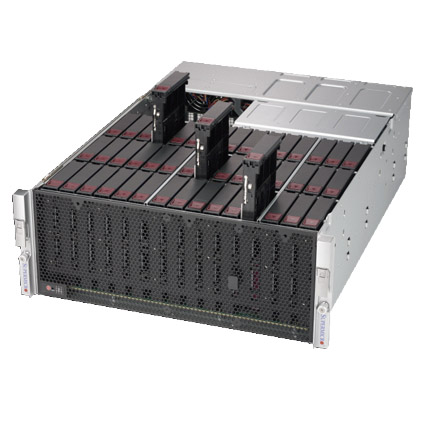

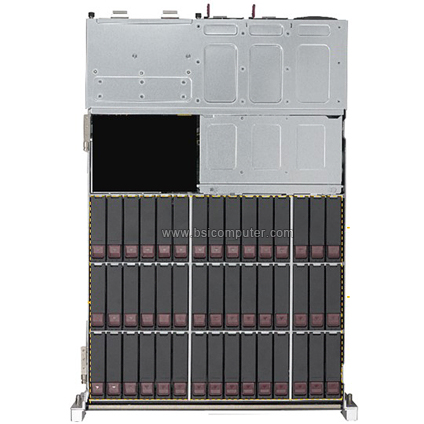

The Supermicro SuperStorage Server 5049P-E1CR45L is a 26" depth 4U Rackmount server that features 45x 3.5" hot-swap SAS3/SATA3 and 4x rear 3.5" hot-swap drive bays. Supports Intel® Xeon® Scalable Processor, up to 1.0TB DDR4 ECC 3DS LRDIMM Memory. The 5049P-E1CR45L SuperStorage Server comes with five 80mm high-performance cooling fans, and is equipped with 1000W redundant Platinum level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Need a custom solution not offered online? Click the button below

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11SPL-F Motherboard

  • Supermicro X11SPL-F Motherboard
  • Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • 16GB(4x 4GB) DDR4 ECC Registered Memory
  • 45x 3.5" Hot-swap SAS3/SATA3 Drive Bays, Broadcom 3008 SAS3 Controller
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x 2.5" Rear Hot-swap NVMe/SATA Drive Bays (Optional)
  • 20x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Platinum Level Certified

Barebone Only:
