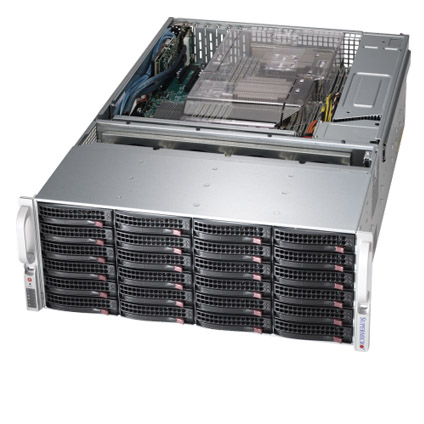

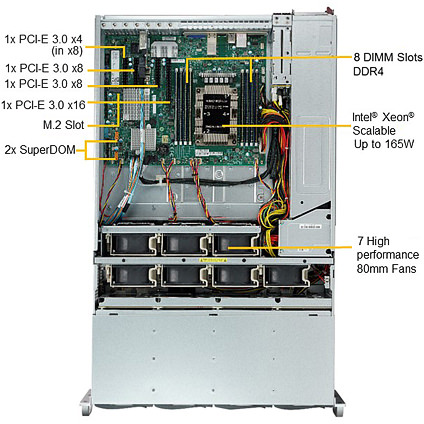

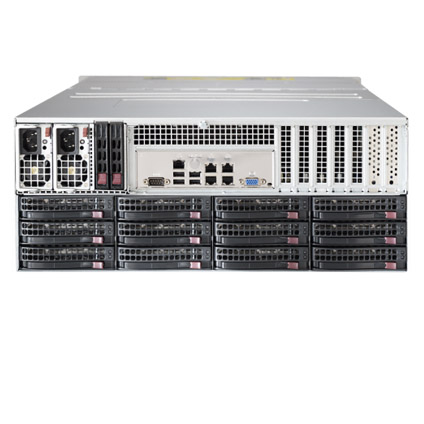

Supermicro SuperStorage Server 5049P-E1CR36L w/ 36x 3.5" SAS3/SATA3 Bays

Features:


Connectivity/Storage Compute Nodes
Database Processing & Storage Appliance Platform
  • 4U Rackmount Server
  • Single Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors
  • Intel® C622 Chipset
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM Slots
  • 36x Hot-swap 3.5" SAS3/SATA3 Drive Bays w/ SES3 (24x Front + 12x Rear)
    SAS3 via Broadcom 3008 Controller
  • 4x Internal Fixed 2.5" Drive Bays
    2x Rear Hot-swap 2.5" NVMe/SATA Drive Bays(Optional)
  • 1x M.2 Slot
  • 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8)
  • 2x 10GBase-T LAN ports with Intel X557
    Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 7x High-performance 8cm PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 27.5" Depth Rack Mount Chassis

The Supermicro Server 5049P-E1CR36L is a 27.5" depth 4U Rackmount server features Intel® Xeon® Scalable Processor, supports up to 1.0TB DDR4 ECC 3DS LRDIMM Memory, built-in dual port 10GBase-T LAN. The Supermicro SuperStorage Server 5049P-E1CR36L comes with thirty six 3.5" hot-swap SAS3/SATA3 drive bays, seven 80mm PWM cooling fans, and is equipped with 1000W redundant Titanium level power supply.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11SPH-nCTF Motherboard


  • Supermicro X11SPH-nCTF Motherboard
  • Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C622 Chipset
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 36x 3.5" Hot-swap SAS/SATA Drive Bays
    2x Rear Hot-swap 2.5" NVMe/SATA Drive Bays (Optional)
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$2,555.00

Configured:

$3,635.00

Customize
