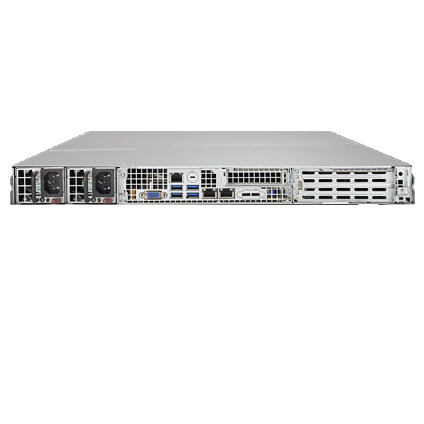

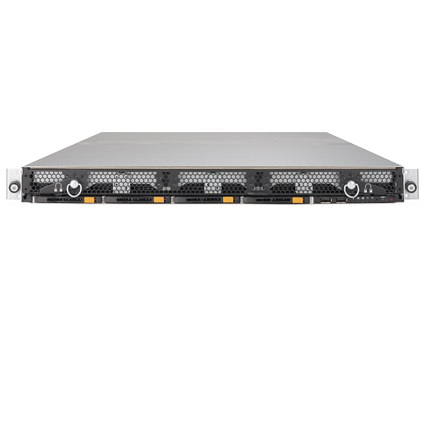

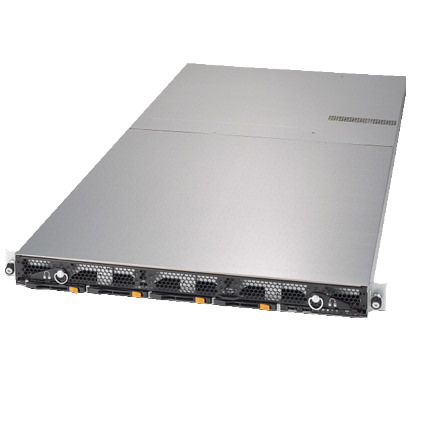

Supermicro SuperStorage 6019P-ACR12L+ 1U Storage Server

Features:


High Density Storage
Object Storage 1U
Scale-out Storage
Ceph / Hadoop
Big Data Analytics
  • 1U Rackmount Server
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Intel® C622 Chipset
  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2933MHz; 12x DIMM Slots
  • 12x Hot-swap 3.5" SAS3/SATA3 Drive Bays
    4x Hot-swap 2.5" 7mm NVMe/SATA Drive Bays
  • 3x PCI-E 3.0 x16 Slots
    AOM Slot (AOM Broadcom 3216 SAS3 IT Mode)
  • 1x M.2 Slot
  • 2x 10GBase-T Ethernet LAN Ports via Intel 622; IPMI 2.0 + KVM with Dedicated LAN
  • 1x VGA, 4x USB 3.0 (Rear)
  • Internal Cable Arm
  • 6x 40mm 20.5K RPM Cooling Fans
  • 800W Redundant Power Supplies, Platinum Level
  • 37.4" Depth Rack Mount Chassis

The Supermicro 6019P-ACR12L+ 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, built-in two 10GBase-T LAN ports. The Supermicro Server 6019P-ACR12L+ comes with twelve 3.5" hot-swap SAS3/SATA3 drive bays and four hot-swap 2.5" 7mm NVMe/SATA drive bays. Is equipped with six 40mm 20.5K RPM cooling fans, and 800W redundant platinum Level power supplies.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DDW-NT Motherboard


  • Supermicro X11DDW-NT Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 12x Hot-swap 3.5" SAS3/SATA3 Drive Bays
    4x Hot-swap 2.5" 7mm NVMe/SATA Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in VGA, 4x USB 3.0 Ports
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 800W Redundant Platinum Level Power Supplies

Barebone Only:

$2,595.00

Configured:

$3,675.00

Customize
