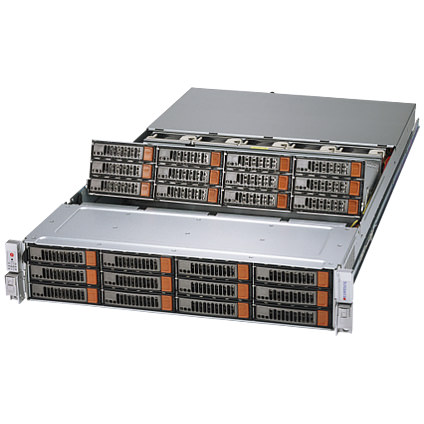

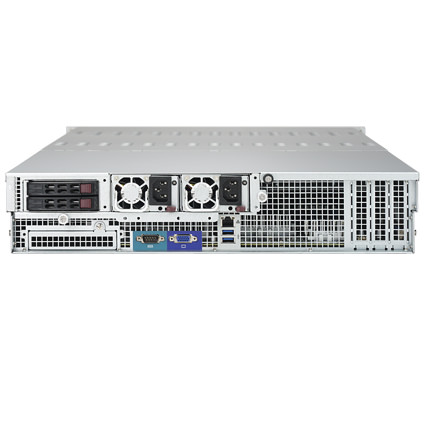

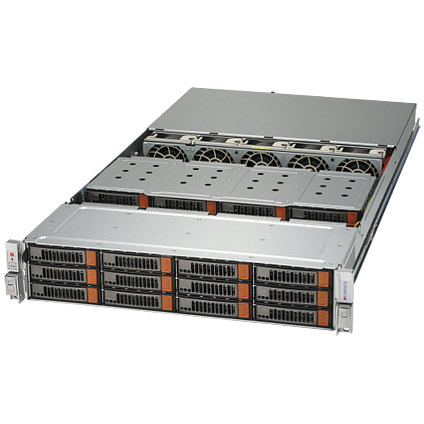

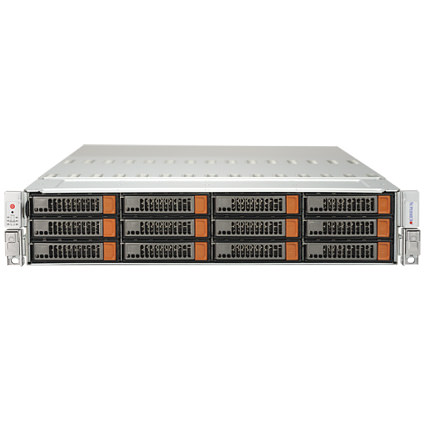

Supermicro SuperStorage 6029P-E1CR24L 2U Rackmount Server

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM Slots
  • 24x Hot-swap 3.5" SAS3/SATA3 Drive Bays, LSI 3008 SAS3 IT Mode Controller
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Slots
    1x SIOM Card Support (Flexible Networking) Note: Must Bundle with Network Card
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 80mm High Performance PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 34" Depth Rack Mount Chassis

The Supermicro SuperStorage Server 6029P-E1CR24L is a 34" depth 2U Rackmount server that features 24x 3.5" Hot-swap SAS3/SATA3 drive bays for high-capacity storage. Supports dual Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 LRDIMM Memory. The Supermicro Server 6029P-E1CR24L comes with five 80mm high performance PWM fans, is equipped with 1000W redundant titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DSC+ Motherboard


  • Supermicro X11DSC+ Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 12x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 24x 3.5" Hot-swap SAS3/SATA3 Drive Bays, 2x Rear Hot-swap 2.5" Drive Bays
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2 (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$3,229.00

Configured:

$5,789.00

Customize
