Supermicro SuperServer 6029P-WTRT w/ 12x 3.5" SAS/SATA/NVMe Drive Bays


Web Server, Firewall Apps.
Corporate-Wins, DNS, Print, Login
Gateway, provisioning servers
Compact Network Appliance
Cloud Computing

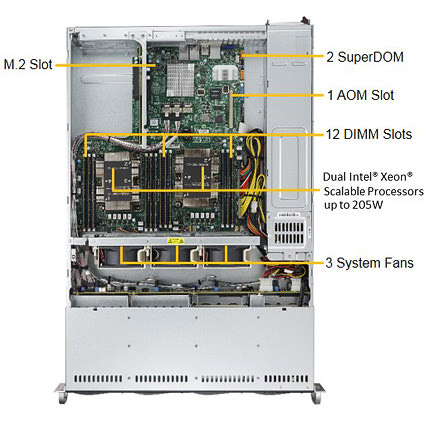

  • 2U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C622 Chipset
  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 12x DIMM Slots

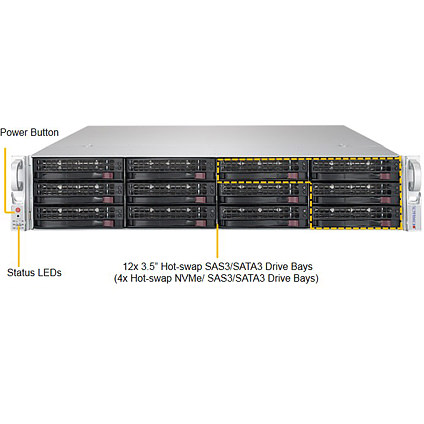

  • 12x 3.5" Hot-swap SAS/SATA Drive Bays (4x NVMe/SAS3/SATA3 Hybrid Drive Bays)
  • 1x PCI-E 3.0 x16 (FHHL) Slot
    2x PCI-E 3.0 x8 (FHHL) Slots
    2x PCI-E 3.0 x8 (LP) Slots
    1x PCI-E 3.0 x16 for Add-on-Module
    1x PCI-E M.2 SSD Slot
  • 2x 10GBase-T LAN Ports via Intel C622
  • 1x VGA, 4x USB 3.0
  • 3x 80mm High-performance PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 25.5" Depth Rack Mount Chassis

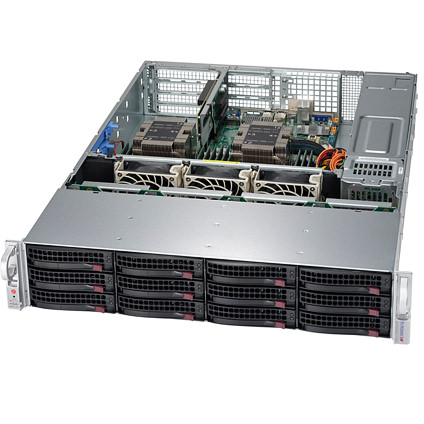

The Supermicro Server 6029P-WTRT 25.5" depth 2U Rackmount server features dual Intel® Xeon® Scalable Processor & Intel® C622 Chipset. supports up to 1.5TB DDR4 ECC 3DS LRDIMM Memory, two 10GBase-T LAN & IPMI LAN ports. The Supermicro SuperServer 6029P-WTRT comes with twelve hot-swap 3.5" drive bays, three 80mm high performance cooling fans, and is equipped with 1000W redundant Titanium level power supply.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DDW-NT Motherboard

  • Supermicro X11DDW-NT Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C622 Chipset
  • 48GB(12x 4GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T Ethernet Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:
