Supermicro 6029TP-HTR 2U Rackmount Server

Features:


Compute Intensive Application
HPC, Data Center, Enterprise Server
Financial Analysis
Mission-critical applications

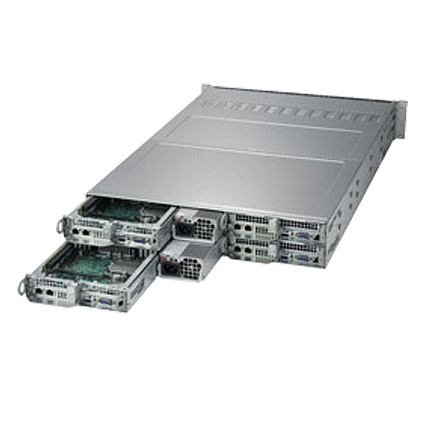

4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

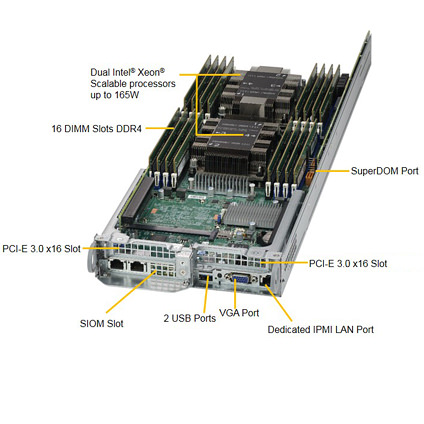

  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM slots

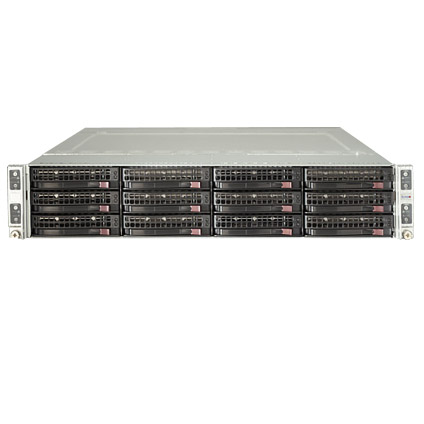

  • 3x 3.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 3.0 x16 Slots

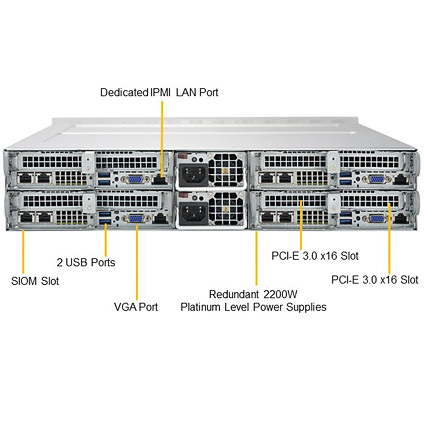

  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 4x 80mm Heavy Duty Fans
  • 1200W Redundant Power Supplies; Titanium Level (96%)
  • 30.5" Depth Rackmount Chassis

The Supermicro SuperServer 6029TP-HTR is a 30.5" depth 2U 4x nodes high performance rackmount server. Each nodes supports dual Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 6029TP-HTR 2U Racknount Server comes with 12x hot-swap 3.5" SATA3 drive bays, four 80mm heavy duty fans, and is equipped with 1200W redundant Titanium level power supply.


Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPT-PS Motherboard


  • 4x Supermicro X11DPT-PS Motherboard
  • 8x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 128GB(16x 8GB) DDR4 ECC Reg Memory
  • 12x 3.5" Hot-swap SATA3 Trays
  • 4x 1.0TB SATA 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 4x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1200W Redundant 80 Plus Titanium Power Supply

Barebone Only:

$8,179.00

Configured:

$4,105.00

Customize
