Supermicro 6029TR-DTR 2U Rackmount Server

Features:


HPC
Virtualization
Data Center
Web Server

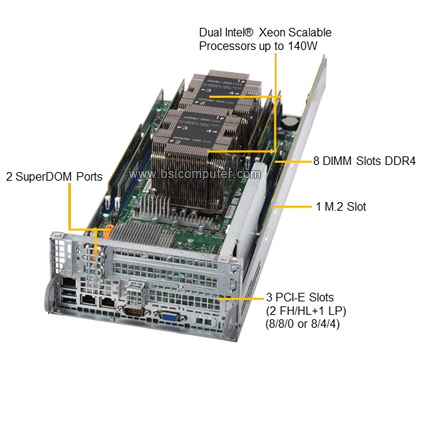

2x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 8x DIMM Slots

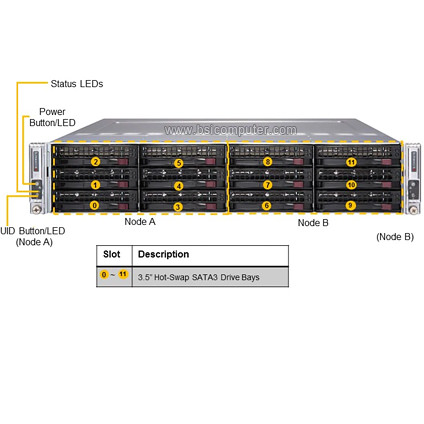

  • 6x 3.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 3.0 x8 (FH/HL) or 1x PCI-E 3.0 x8 (FH/HL) + 1x PCI-E 3.0 x4 (FH/HL) + 1x PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4)
  • Dedicated IPMI 2.0 LAN
  • 2x SATA DOM + 1x SATA/NVMe M.2 (22110/2280)
  • 4x 80mm Heavy Duty Fans with Optimal Fan Speed Controlled
  • 1200W Redundant Power Supplies; Titanium Level (96%)
  • 28.5" Depth Rackmount Chassis

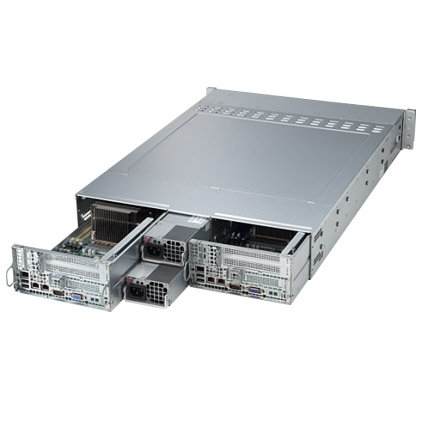

The Supermicro SuperServer 6029TR-DTR is a 28.5" depth 2U 2-nodes high performance rackmount server. Each nodes supports dual Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The Supermicro Server 6029TR-DTR comes with 12x hot-swap 3.5" SATA3 drive bays, four 80mm heavy duty fans, and is equipped with 1200W redundant titanium level power supply.
