Supermicro CloudDC SuperServer 611C-TN4R

Features:


Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes
  • 1U Rackmount Server
  • Dual Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors
  • Intel® C741 Chipset
  • 16x DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz

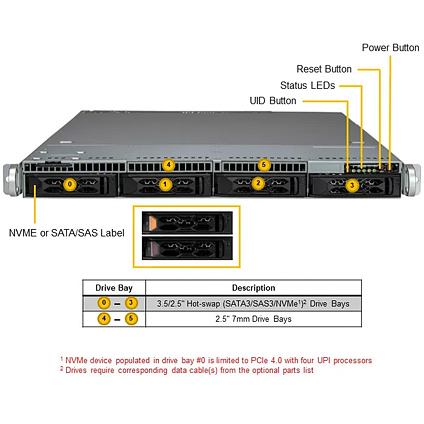

  • 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 2x PCIe 5.0 x4 NVMe M.2
  • 2x PCIe 5.0 x16 FHHL
  • 2x AIOM (OCP 3.0) slots with NCSI for networking, 1x dedicated IPMI LAN

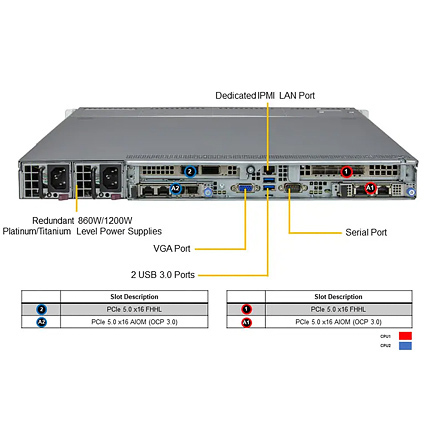

  • 1x VGA, 1x COM, 2x USB 3.0 (rear)
  • 6x 40mm counter-rotating PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 25.6" Depth Rack Mount Chassis

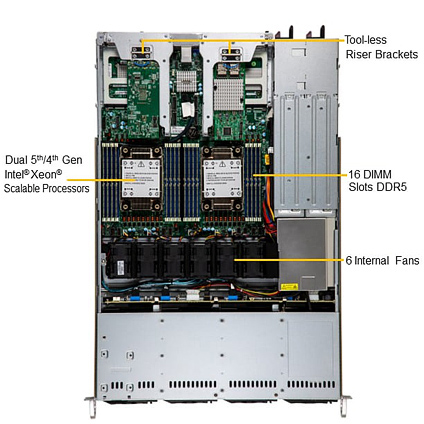

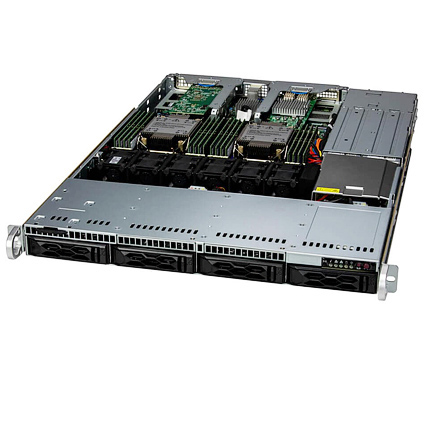

The Supermicro CloudDC SuperServer 611C-TN4R 1U 25.6" depth Rackmount server features dual socket 4th/5th Gen. Intel® Xeon® Scalable Processor. Supports 16x DDR5 ECC RDIMM slots, 2x PCIe 5.0 x4 NVMe M.2 slots, 2x PCIe 5.0 x16 FHHL slots, dual AIOM (OCP 3.0) slots with NCSI for networking and 1x dedicated IPMI LAN. The Supermicro Server 611C-TN4R comes with 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays, 6x heavy duty fans, and is equipped with 860W redundant titanium level power supply.
