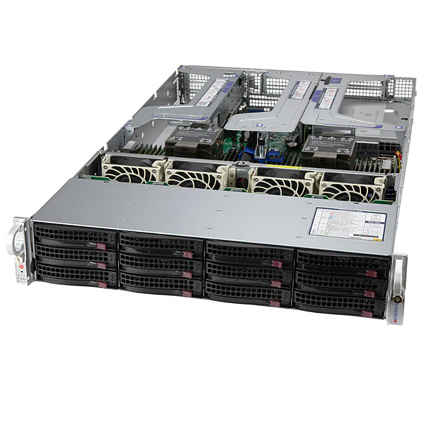

Supermicro Ultra SuperServer 620U-TNR

Features:


Virtualization
HPC
Cloud Computing
High End Enterprise Server
Software Defined Storage
Application Tier Service Provider
5G/Telco
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors.
  • Intel® C621A Chipset

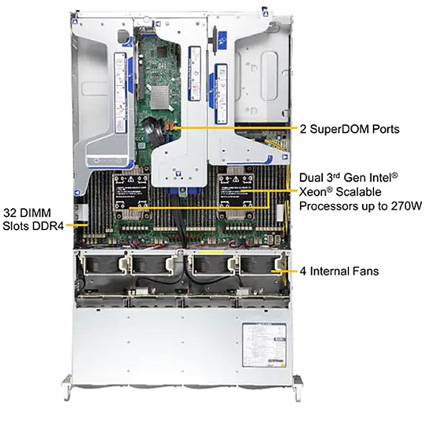

  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  • 12x Hot-swap 2.5'' NVMe/SATA/SAS drive bays

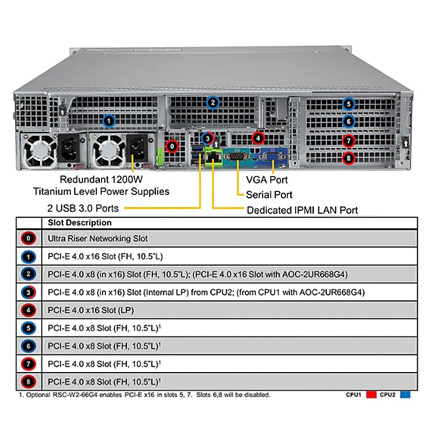

  • 1x PCI-E 4.0 x16 FH, 10.5"L slot; 1x PCI-E 4.0 x16 LP slot; 5x PCI-E 4.0 x8 FH, 10.5"L slots (PCI-E 4.0 x16 options available); 1x PCI-E 4.0 x8 internal LP slot
  • Flexible networking options
  • 4x 80mm Heavy duty hot-swap fans with optimal fan speed control
  • 1200W Redundant Power Supply
  • 29.05" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 620U-TNR 2U 29.05" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 12.0TB Memory, The Supermicro Server 620U-TNR comes with 12x 3.5" hot-swap NVMe/SATA/SAS drive bays, 4x 80mm heavy duty fans, and is equipped with 1200W redundant power supply.
