Features:

• 12.1” 1024 x 768 (4:3) 500nits w/ Multi-point Projected Capacitive Touch Screen
• Narrow Bezel Design, Anti-glare and Anti-UV PCAP
• Support Gloved and Wet Hand Operation
• 12th/13th Generation Intel Core i Processors (Alder Lake-P & Raptor Lake-P)
• Dual channel 8GB LPDDR4x On Board
• 1 x M.2 M key 2280 (PCIe Gen4 x4), 1 x M.2 M key 2242 (PCIe Gen4 x4)
• Support WiFi 6E and Bluetooth 5.2
• Durable Aluminum Die Casting Housing
• IP64 Compliant Front Panel
• Mounting Supports Wall, Stand, Arm, VESA 100 (Optional)

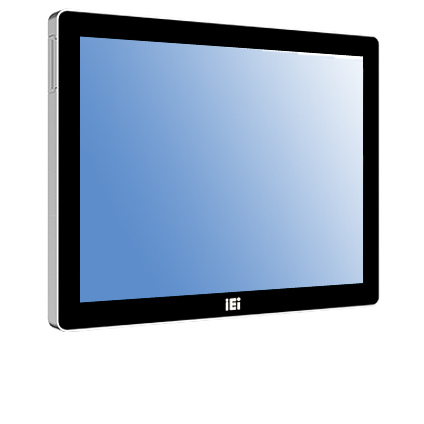

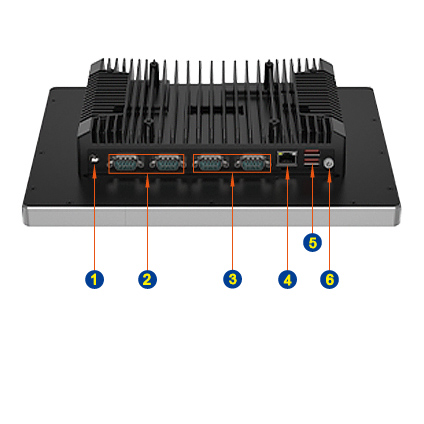

The AFL4-121-ADLP is a high-performance 12.1-inch panel computer designed for industrial and commercial applications. Powered by 12th Gen Intel Core Mobile i7/i5/i3 processors (Alder Lake-P), it features onboard 8GB LPDDR4x memory, Wi-Fi 6E, and Bluetooth 5.0 for wireless connectivity. Its dual 2.5GbE LAN ports (Intel® I225V/LM) support high-speed networking, while expansion options include two M.2 slots (PCIe Gen4). The rugged front panel is IP65-rated, with a 500-nit brightness display, 10-point capacitive touch (glove-supported), and a durable 7H-hardness coating. I/O includes RS-232/422/485 serial ports, USB 3.2 Gen2, HDMI and 12V DC input. Operating in -10°C to 50°C environments, it supports Windows 10 IoT and Linux, making it ideal for automation, kiosks, and control systems.
