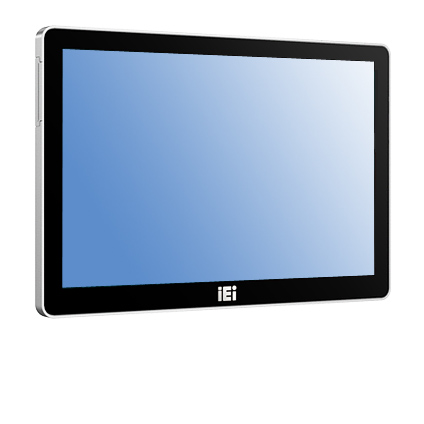

AFL4-W101-ADLP light industrial Panel PC

Features:

  • 10.1" 1280 x 800 (16:10) 350nits w/ Multi-point Projected Capacitive Touch Screen
  • Narrow Bezel Design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • 12th/13th Generation Intel Core i Processors (Alder Lake-P & Raptor Lake-P)
  • Dual channel 8GB LPDDR4x On Board
  • 1 x M.2 M key 2280 (PCIe Gen4 x4), 1 x M.2 M key 2242 (PCIe Gen4 x4)
  • Support WiFi 6E and Bluetooth 5.2
  • IP64 Compliant Front Panel
  • Durable Aluminum Die Casting Housing
  • Mounting Supports Wall, Stand, Arm, VESA 100 (Optional)

The AFL4-W101-ADLP is a rugged 10.1-inch fanless panel PC featuring a 1280×800 (16:10) multi-touch display with anti-glare coating, glove support, and ?7H surface hardness. Powered by 12th Gen Intel Core i7/i5/i3 mobile processors (Alder Lake-P) and 8GB LPDDR4X memory, it delivers reliable performance for industrial automation and harsh environments. Connectivity options include Wi-Fi 6E, Bluetooth 5.0, dual 2.5GbE LAN ports (Intel I225V & I225-LM with AMT support), and versatile I/O such as USB 3.2 Gen2, RS-232/422/485, and HDMI™. Expansion is supported via two M.2 slots (PCIe Gen4), while its fanless, IP65-rated front panel ensures durability in temperatures ranging from -10°C to 50°C. With 350 cd/m² brightness, aluminum die-cast construction, and VESA 100 mounting, it’s built for demanding applications. Certified for CE, FCC, and RED (Class A), it supports Windows 10 IoT and Linux.

Barebone & Base Configurations

AFL4-W101-ADLP 10.1" Fanless Touch Panel PC


  • 10.1" 1280 x 800 350nits Projected Capacitive Touch Screen
  • Intel Core i3-1320PE On-board Processor (12M Cache, up to 4.50 GHz)
  • Intel Core i5-1340PE / Core i7-1370PE Processor (Optional)
  • 8GB LPDDR4x Memory On-board
  • 500GB M.2 NVMe Solid State Drive
  • 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
  • 2 x 2.5GbE LAN
  • 4 x USB3.2, 1 x USB2.0
  • HDMI
  • TPM: Intel Platform Trust Technology
  • 1 x M.2 M Key 2242
  • IEEE 802.11ax 2T2R Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
  • IP64 Compliant Front Panel
  • Power Adapter

Barebone Only:

$1,079.00

Configured:

$1,145.00

Customize
