Features:

• 12.1" 1280 x 800 (16:10) 450nits w/ Multi-point Projected Capacitive Touch Screen
• Narrow Bezel Design, Anti-glare and Anti-UV PCAP
• Support Gloved and Wet Hand Operation
• 12th/13th Generation Intel Core i Processors (Alder Lake-P & Raptor Lake-P)
• Dual channel 8GB LPDDR4x On Board
• 1 x M.2 M key 2280 (PCIe Gen4 x4), 1 x M.2 M key 2242 (PCIe Gen4 x4)
• Support WiFi 6E and Bluetooth 5.2
• Durable Aluminum Die Casting Housing
• IP64 Compliant Front Panel
• Mounting Supports Wall, Stand, Arm, VESA 100 (Optional)

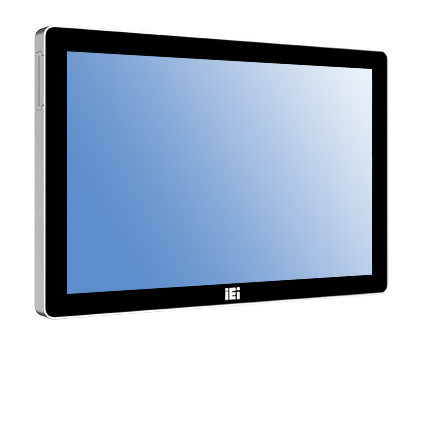

The AFL4-W121-ADLP is a compact 12.1" fanless panel PC with a 1280×800 (16:10) touchscreen, featuring anti-glare coating, glove support, and 7H surface hardness. Powered by 12th Gen Intel® Core™ i7/i5/i3 mobile processors (Alder Lake-P) and 8GB LPDDR4x memory, it ensures efficient performance for industrial applications. Connectivity includes Wi-Fi 6E, Bluetooth 5.0, dual 2.5GbE LAN ports (Intel I225V & I225-LM with AMT support), and versatile I/O such as USB 3.2 Gen2, RS-232/422/485, and HDMI™. Expansion is enabled via two M.2 slots (PCIe Gen4), while its fanless design operates silently in temperatures from -10°C to 50°C. With IP65 front-panel protection, 450 cd/m² brightness, and VESA/mounting flexibility, it’s built for demanding environments. Certified for CE, FCC, and RED (Class A), it supports Windows 10 IoT and Linux.
