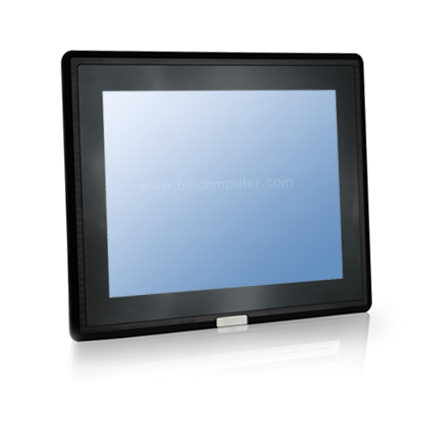

DM-F12A - 12" High Brightness IP65 Industrial Monitor

Features:

  • 12" 500nits High Brightness TFT LCD with 1024x768 Resolution
  • Aluminum Front Panel meets IP65 Standard for Tough Working Environment
  • Aesthetic Ultra-thin Bezel for Seamless Panel Mount Installation
  • 5-Wire Resistive Flat Touch Screen
  • Projected Capacitive Flat Multi-touch Screen (Optional)
  • VGA, HDMI, DisplayPort Flexible Video Input Solution
  • Supports Panel Mount, Wall Mount, Rack Mount, 100x100 VESA Mounting Kit

DM-F12A 12" industrial LCD monitor features 500nits high brightness TFT LCD and wide viewing angles. It supports USB resistive touch or projected capacitive multi-touch screen. The DM-F12A comes with triple flexible video input ports, and robust IP65 aluminum front bezel for shacking and vibration requirement. This industrial LCD monitor provides high end features at a very economical price.

Base Configurations

DM-F12A - 12" IP65 Industrial LCD Monitor
DM-F12A - 12" IP65 Industrial LCD Monitor


  • 12" 1024x768 TFT LCD
  • 500nits Brightness, 700:1 Contrast Ratio
  • 5-Wire Resistive Flat Touch Screen
  • Projected Capacitive Flat Multi-touch Screen (Optional)
  • 16.2M Colors
  • View Angle: 160°H/140°V
  • Input: VGA, HDMI, DisplayPort
  • Power: 90-36V DC Power Input
    12V 60W Power Adapter with Lock (Optional)
  • Operating Temp: 14°F-122°F (-10°C-50°C)
  • Dimensions: 12.69" x 10.32" x 1.59" (W x H x D)

Configured:

$669.00

Customize
