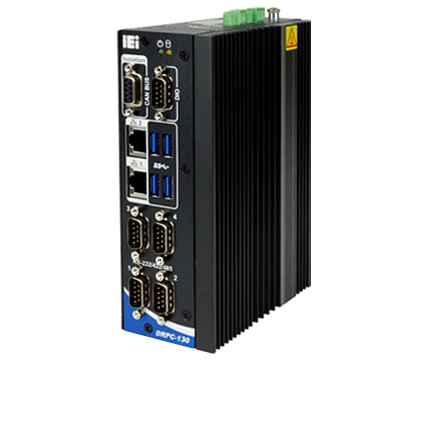

DRPC-130-AL DIN-Rail Embedded PC

Features:

  • Intel® Atom™ x5-E3930 1.3GHz Processor (up to 1.8 GHz, Dual core, TDP=6.5W)
  • 1 x 204-pin DDR3L SO-DIMM Memory (Max. 8GB)
  • 1 x 2.5'' SATA 6Gb/s HDD/SSD Bay
  • 1 x eMMC 5.0 Support (up to 32GB, Optional)
  • 1 x Full Size PCIe Mini Slot (supports mSATA, colay with SATA), 1 x Half Size PCIe Mini Slot
  • 1 x Internal On-board SIM Slot (Optional)
  • 4 x RS-232, 1 x CAN Bus, 2 x GbE LAN, 4 x USB 3.0
  • 1 x 8-bit Digital DIO
  • 2 x HDMI 1.4b (Up to 3840 x 2160@30Hz)
  • 1 x TPM 2.0 (2x10 pin) (Optional)
  • Wide Temperature Range -4°F- 140°F (with air flow (SSD)


The DRPC-130-AL is a DIN-rail Fan-less embedded system that runs on an integrated SoC chipset, which supports the Intel Atom x5-E3930 1.3GHz processor up to a speed of 1.8 GHz. The chassis is constructed using an Extruded aluminum alloy. The I/O interface is equipped with USB 3.0, RJ-45 ethernet, RS-232/422/485 COM, DB-9 w/ 2.5kV CAN-Bus and HDMI 1.4b.

Internally the system has a 204-pin DDR3L SO-DIMM slot which is pre-installed with 4 GB of RAM and supports up to a maximum capacity of 8 GB. The user may install storage devices that will fit within a 2.5' SATA 6Gb/s HDD/SSD bay. The expansion slots included with the system offers one Half-size PCIe Mini slot and one Full-size PCIe Mini slot. The overall power input ranges from 12 V to 24 V DC and has a consumption rate of 12V at 2.88A. The DRPC-130-AL has an operational temperature range of -20°C to 60°C assuming the device has airflow and is installed with a solid state drive.

Barebone & Base Configurations

DRPC-130-AL Din-rail Fanless Embedded PC

  • Intel® Atom x5-E3930 1.3GHz Dual-core Processor
  • 4GB DDR3L SO-DIMM Memory
  • 1.0TB 2.5" SATA Hard Drive
  • 4 x RS-232, 1 x CAN Bus, 1 x 8-bit Digital DIO, 2 x GbE LAN, 4 x USB 3.0
  • 2 x HDMI 1.4b
  • TPM 2.0 Module (Optional)
  • 1 x Full Size PCIe Mini Slot, 1 x Half Size PCIe Mini Slot
  • Wireless Module (Optional)
  • 12-24 VDC Power Input

Barebone Only:

$349.00

Configured:

$479.00

Customize
