Features:

• Support Intel Elkhart Lake Atom x6000 series on-board SoC
• Onboard LPDDR4X 3200MHz 8G Memory (up to 16GB)
• 1 x 2.5'' SATA 6Gb/s HDD Bay
• Support 1 x M.2 A key and 1 x M.2 B key Slot
• High speed I/O interface for USB 3.2 gen 2, SATA 6Gb/s
• Dual 2.5 GbE LAN with Intel I225-IT
• Support Dual Independent Display
• Wide Operating Temperature (-4°F ~ 158°F)

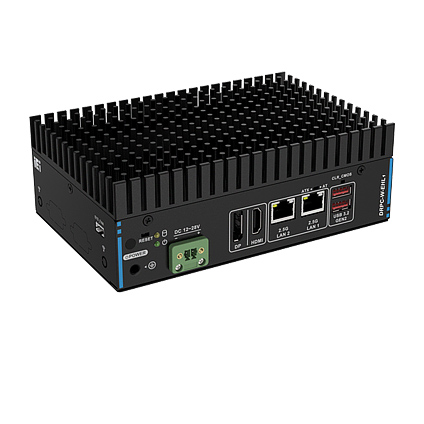

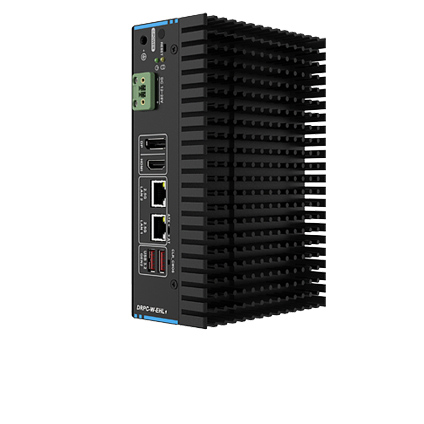

The DRPC-W-EHL1 is a compact, fanless DIN-rail computer built for industrial automation and space-constrained environments. It is powered by an onboard Intel Elkhart Lake Atom x6000 series SoC, balancing efficient performance with low power consumption. The system supports a dual independent display and features high-speed I/O, including USB 3.2 Gen 2 and SATA 6Gb/s ports. For robust connectivity, it is equipped with dual 2.5 GbE LAN ports using Intel I225-IT controllers and offers further expansion capabilities through one M.2 A-Key and one M.2 B-Key slot for adding wireless communication and high-speed storage.
