GOT5120T-834 - 12.1" Fanless Panel PC

Features:

  • 12.1" XGA/SVGA Color TFT LCD Display with LED Backlight
  • Fanless Design with Intel® Celeron® J1900 2.0 GHz Processor
  • Supports WLAN Module & Internal Antenna
  • Supports 4x USB & 2x COM Ports, 2x Gigabit Ethernet Ports
  • Easy for Expansion: 2x PCIe Mini Card Slots

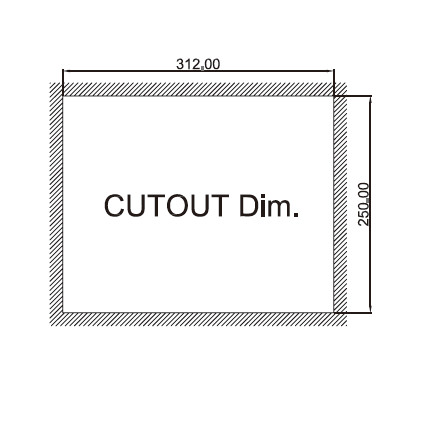

  • Supports Panel Mount, Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Speakers (Optional)
  • Super Slim & Ultra Light Design
  • IP65 NEMA 4 Rugged Plastic Front Bezel


The GOT5120T-834 is a Touch Panel PC with a 12.1" XGA color TFT LCD display with LED backlight designed to be fan-less and offer low power consumption. The front bezel is composed of plastic and is rated at IP-65. The processor supported is Intel's Celeron J1900 2.0GHz. The GOT5120T-834 offers support for one full-size mini PCI Express Mini Card with mSATA and one full-size mini PCI Express Mini Card with SIM Slot.

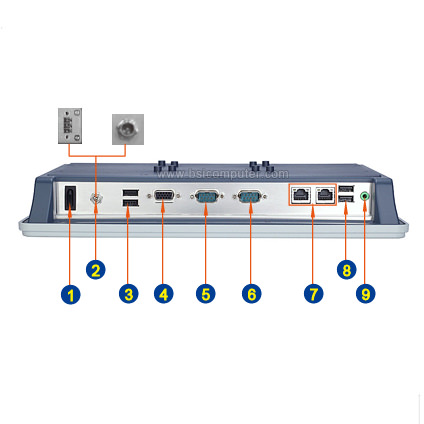

Externally there is access to two Giga LAN, two RS-232/422/485, one VGA and one audio (Line-out). There are four USB ports total, two are USB 2.0 and two are USB 3.0. The GOT5120T-834 supports various mounting methods such as panel mount, wall mount and VESA arm. The desktop stand is optional as well as support for speakers. The Panel PC accepts 9~36VDC or can be used with the 100~240VAC, 60W power adapter.

Barebone & Base Configurations

GOT5120T-834 Fanless Panel PC

  • 12.1" 800 x 600 450 nits SVGA TFT LCD w/Touchscreen
  • Intel® Celeron® J1900 2.0 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 2 x RS-232/422/485 (DB9)
  • 2x PCIe Mini Card Slots
  • Wireless Module (Optional)
  • 9-36VDC Terminal Block Connector

Barebone Only:

$985.00

Configured:

$1,065.00

Customize

GOT5120T-834 Fanless Panel PC

  • 12.1" 1024 x 768 500 nits XGA TFT LCD w/Touchscreen
  • Intel® Celeron® J1900 2.0 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 2 x RS-232/422/485 (DB9)
  • 2x PCIe Mini Card Slots
  • Wireless Module (Optional)
  • 9-36VDC Terminal Block Connector
  • 60W 100-240VAC Screw Type AC/DC Power Adapter (Optional)

Barebone Only:

$925.00

Configured:

$1,005.00

Customize
