GOT710A 10.4" Railway Fanless Panel PC
Features:
- Sunlight Readable 10.4" XGA, 500 nits High Brightness
- Intel Atom processor x6425E, 12W (Elkart Lake)
- 1 x 260-pin DDR4-3200 SO-DIMM, (Max. 32GB)

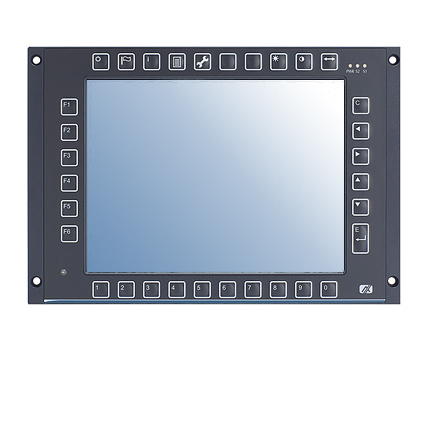

- Alternative Keypad Control on the Front Bezel
- M12-type Lockable Connectors Design
- Wide Operating Temperature Range of -40°F - +158°F (EN 50155 OT4)
- EN 50155 and EN 45545-2 Certificated for Railway Application
- Typical 24 to 110VDC Power Input, EN 50155 Class S3 20ms Power Interruption Protection

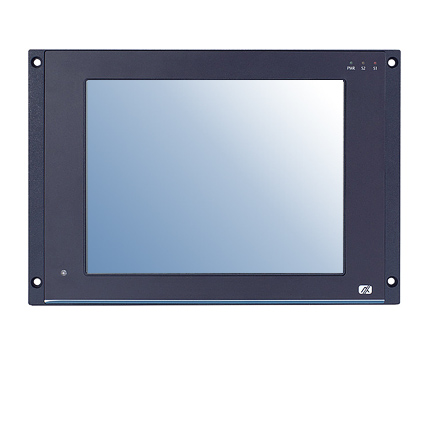

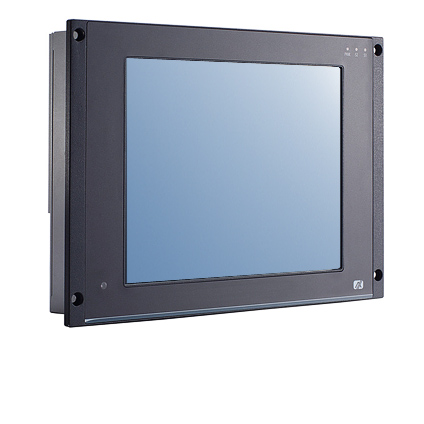

The GOT710A is a rugged 10.4" panel computer designed specifically for railway and other demanding outdoor applications. It features a sunlight-readable XGA TFT LCD with auto-dimming capability to adapt to varying light conditions, ensuring clear visibility at all times. Powered by a low-power Intel Atom x6425E processor (Elkhart Lake), it delivers efficient performance while maintaining durability. The system includes an alternative keypad control on the front bezel for added user convenience and is built with M12-type lockable connectors for secure, vibration-resistant connections. Engineered for harsh environments, the GOT710A supports a wide operating temperature range from -40°C to +70°C and offers a wide 24 to 110 VDC power input range with EN 50155 Class S3 20ms power interruption protection. Certified to EN 50155 and EN 45545-2 standards, it's ideal for reliable use in railway and transportation systems.
Base Configurations
- 10.4" 1024x768 500 nits TFT LCD w/ Projected Capacitive Touch Screen
- Intel Atom processor x6425E, 12W (Elkart Lake)
- 4GB DDR4 Memory Onboard
- 64 GB M.2 2242 SATA Solid State Drives

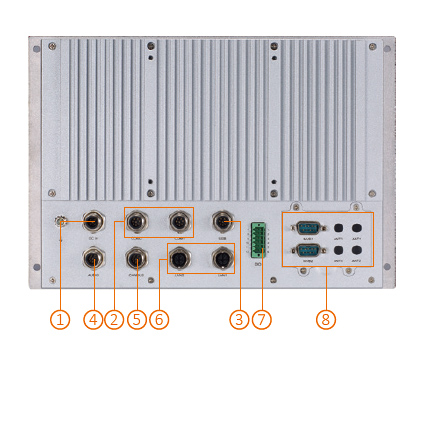

- 2 x RS-232/422/485 (M12)
- 2 x Gigabit Ethernet LAN (M12)
- 2 x USB2.0 (M12)
- 1 x CAN bus (M12)
- 1 x Terminal Block DIO (6-in/2-out)
- 1 x Full-size Mini Card slot (PCIe/USB/SIM), 1 x Full-size Mini Card slot (PCIe/USB/mSATA)
- 1 x M.2 Key A + E 2230 slot (PCIe/USB)
- Typical 24 to 110VDC Power Input, EN 50155 Class S3 20ms Power Interruption Protection
