GOT815A-TGL-WCD 15.6" Stainless Steel Panel PC

Features:

  • Fanless Design
  • 15.6" WXGA TFT Flat Bezel LCD Display with Projected Capacitive Multi-touch Screen
  • IP66/IP69K-rated (NEMA 4X) Water/Dust Design
  • Full Stainless Steel Enclosure with Type SUS 304
  • Intel® Core™ i5-1145G7E (Tiger Lake) 2.6 GHz or Celeron® 6305E 1.8 GHz
  • 1 x 260-pin DDR4-3200 SO-DIMM (Max. 32GB)
  • TPM 2.0 Onboard
  • 1 x 2.5" SATA SSD/HDD (9.5mm Height)
  • Wi-Fi kit for Wireless Network Connectivity (Optional)
  • Supports VESA Mount
  • Supports proximity and light sensors (Optional)
  • M12 Type Connectors for Harsh Environments
  • Wide Operating Temperature Range: -4°F to +122°F

The GOT815A-TGL-WCD is a highly durable stainless steel fanless touch panel computer designed to thrive in challenging industrial environments. Featuring a 15.6" WXGA TFT flat bezel LCD display, this touch panel computer delivers clear visuals and intuitive touch functionality. Its IP66/IP69K-rated (NEMA 4) water and dust design ensures reliable operation even in harsh conditions. The full stainless-steel enclosure with SUS 304 construction provides robust protection against corrosion and mechanical damage. With a wide operating temperature range of -20°C to +50°C, the GOT815A-TGL-WCD remains operational in extreme temperature environments. Powered by an Intel® Core™ i5-1145G7E or Celeron® 6305E processor, this fanless system delivers efficient performance without the need for a cooling fan. For enhanced connectivity, an optional Wi-Fi kit is available for wireless network connectivity. The panel computer supports VESA mounting, allowing for flexible installation. In addition, the M12-type connectors enable secure and reliable connections in harsh environments. Optional proximity and light sensors further enhance the functionality of the GOT815A-TGL-WCD. This stainless steel fanless touch panel computer is an ideal solution for industries that demand durability, reliability, and advanced touch capabilities.

Barebone & Base Configurations

GOT815A-TGL-WCD Fanless Touch Panel PC


  • 15.6" 1366 x 768 TFT LCD, 400nits Brightness, Projected Capacitive Touch Screen
  • IP66/IP69K-rated (NEMA 4X) Full Stainless Steel Enclosure
  • Intel® Core™ i5-1145G7E Processor (8M Cache, up to 4.10 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive

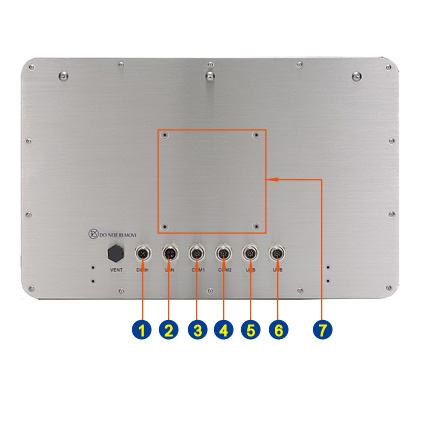

  • 2 x RS-232/422/485 (M12), 4 x USB2.0 Port (M12)
  • 1 x 2.5GBase-T Ethernet with Intel® I225 (X-coded) supporting Wake-on-LAN and PXE Boot ROM
  • 1 x M.2 Key E Slot (with PCIe x1 and USB 2.0 Supported), Dimensions: 22 x 30 mm
  • 12 ~ 24 VDC Power Input

  • Barebone Only:

    $2,079.00

    Configured:

    $2,165.00

    Customize

    GOT815A-11C-WCD Fanless Touch Panel PC


  • 15.6" 1366 x 768 TFT LCD, 400nits Brightness, Projected Capacitive Touch Screen
  • IP66/IP69K-rated (NEMA 4X) Full Stainless Steel Enclosure
  • Intel® Celeron® 6305E Processor (4M Cache, 1.80 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 2 x RS-232/422/485 (M12), 4 x USB2.0 Port (M12)
  • 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-coded) in support of Wake-on-LAN and PXE Boot ROM
  • 1 x M.2 Key E Slot (with PCIe x1 and USB 2.0 Supported), Dimensions: 22 x 30 mm
  • 12 ~ 24 VDC Power Input

  • Barebone Only:

    $1,599.00

    Configured:

    $1,679.00

    Customize
