ICO300-83B Robust DIN-rail Embedded System with Intel Celeron Processor N3350, Isolated COM

Features:

  • Intel® Celeron® processor N3350 (1.1 GHz)
  • Fanless Design
  • Operating Temperature -4°F - 158°F
    Wide Operating Temperature Range -40°F to 158°F (Optional)
  • 4 x Isolated COM Ports
  • 2 x Full-size PCI Express Mini Card Slots
  • 1 x mSATA and 2.5" 9.5mm SATA Drive
  • 12 ~ 24 VDC Wide Range Power Input

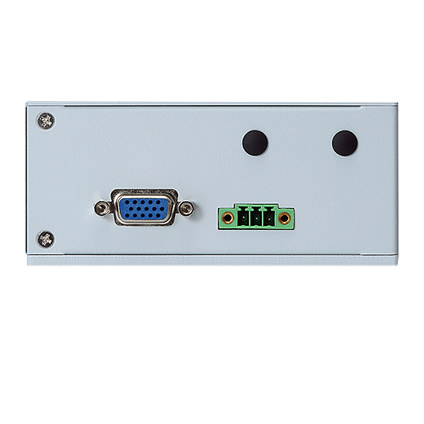

The ICO300-83B is a Fan-less Din-rail Embedded PC which supports Intel's Celeron N3350 processor (1.1 GHz, Dual Core) and up to 8GB of SO-DIMM DDR3L-1866. The construction of this Embedded PC is made up of extruded aluminum and heavy-duty steel and it holds an IP40 rating. The dimensions are 1.88" x 4.33" x 6.1" and it can operate in temperatures ranging from -4°F ~ +158°F. There is one mSATA slot and a 2.5" 9.5 mm SATA drive.

Two full-size PCI Express Mini Card slot, four USB 3.0 ports and two Ethernet 10/100/1000 Mbps lend themselves for various external components. There are also various COM ports, an optional DI/DO (8-bit programmable, DB9 female connector) and a VGA or one optional HDMI. The DC power input through the terminal block is 12 - 24 VDC. The ICO300-83B can be mounted via DIN rail or wall mount.

Barebone & Base Configurations

ICO300-83B-N3350 Robust Din-rail Fanless Embedded Computer

  • Intel® Celeron® Processor N3350 (1.1 GHz)
  • Operating Temperature Range -4°F to 158°F
  • Wide Operating Temperature Range -40°F to 158°F (Optional)
  • 2GB DDR3L SO-DIMM Memory
  • 500GB 5.4K RPM SATA 2.5" Hard Drive
  • 4 x RS-232/422/485 COM Port
  • 1 x DIO (8 bit Programmable)
  • 2 x Full-size PCI Express Mini Card Slots
  • 4 x USB 3.0
  • Built-in VGA Ports, HDMI Optional
  • 2 x 10/100/1000Mbps Ethernet
  • 12-24V DC Terminal Block Power Connector

Barebone Only:

$385.00

Configured:

$535.00

Customize

ICO300-83B-N4200 Robust Din-rail Fanless Embedded Computer

  • Intel® Pentium® Processor N4200 (2M Cache, up to 2.5 GHz)
  • Wide Operating Temperature Range -40°F to 158°F
  • 2GB DDR3L SO-DIMM Memory
  • 500GB 5.4K RPM SATA 2.5" Hard Drive
  • 4 x RS-232/422/485 COM Port
  • 1 x DIO (8 bit Programmable)
  • 2 x Full-size PCI Express Mini Card Slots
  • 4 x USB 3.0
  • Built-in VGA
  • 2 x 10/100/1000Mbps Ethernet
  • 12-24V DC Terminal Block Power Connector

Barebone Only:

$639.00

Configured:

$729.00

Customize
