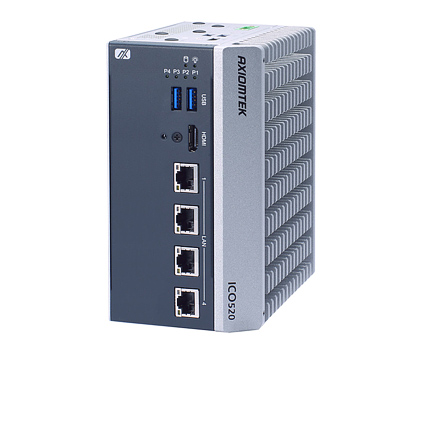

ICO520 DIN-Rail Cybersecurity Gateway

Features:

  • High Performance with Fanless and DIN-rail Design
  • 12th Gen Intel Core i7/i5/i3 or Celeron Processor (Alder Lake-P)
  • 1 x DDR4 SO-DIMM (Max. 32GB)
  • Supports TPM 2.0
  • 4 x isolated COM (Optional), isolated DIO (8-in/8-out), 4 x 2.5 GbE LAN
  • 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
  • Wide Operating Temperature: -40°F to +158°F
  • Supports Cold Boot at -40°F

The ICO520 is a high-performance DIN-rail embedded system built for rugged industrial applications, featuring a fanless design and powered by 12th Gen Intel Core i7/i5/i3 or Celeron processors (Alder Lake-P). Engineered for reliability in extreme conditions, it supports a wide operating temperature range from -40°C to +70°C and offers cold boot capability at -40°C. The system includes robust I/O with 4 isolated COM ports, 2 isolated DIO (8-in/8-out), and 4 high-speed 2.5GbE LAN ports for advanced connectivity. With a 9 to 36 VDC input range (typically 12 to 24 VDC), it also features comprehensive power protections including OVP, UVP, OCP, and RPP. TPM 2.0 support enhances system security, making the ICO520 an ideal solution for mission-critical automation and edge computing environments.

Barebone & Base Configurations

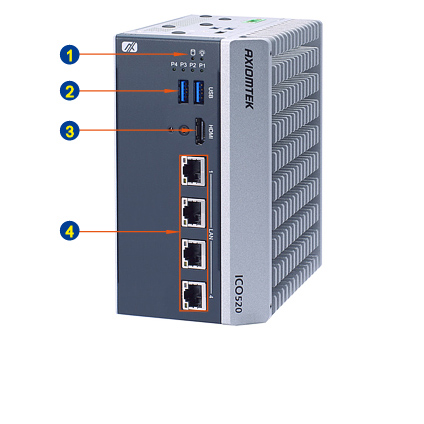

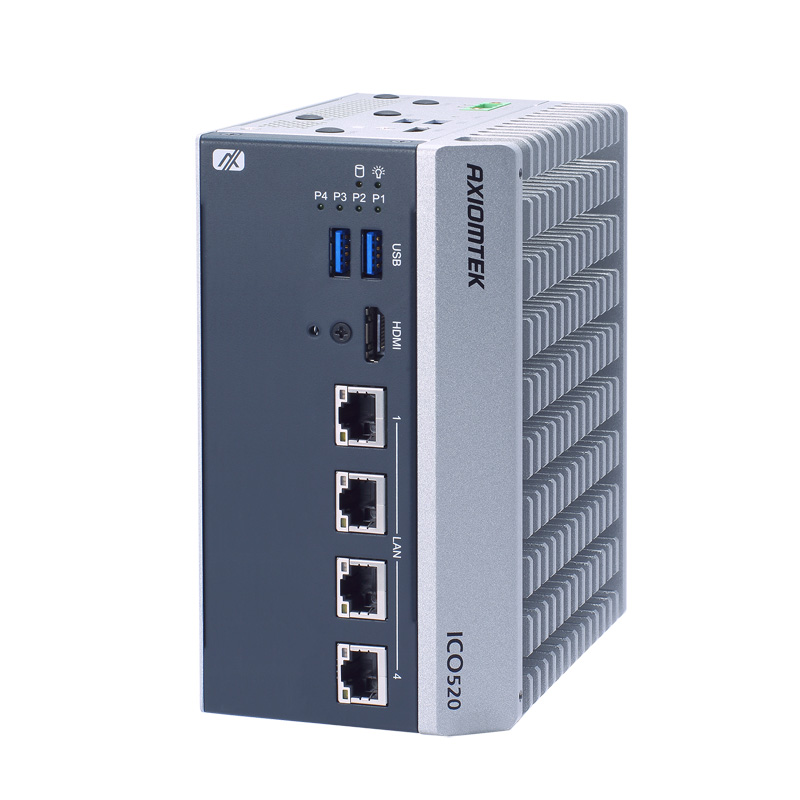

ICO520 Din-rail Fanless Embedded Computer Simplified Model
ICO520 Din-rail Fanless Embedded Computer Simplified Model

  • Model: Simplified Model
  • Intel Celeron Processor 7305E (8M Cache, 1.00 GHz)
  • Up to Intel Core i7 Processor (Optional)
  • 8GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 4 x Isolated 2.5GbE LAN
  • 4 x USB 3.1
  • 2 x HDMI
  • TPM 2.0
  • 1 x M.2 Key B 3050/3052 Slot: PCIe/USB (for 5G/Wi-Fi)
  • 1 x Full-size PCIe Mini Card Slot: PCIe/USB (for LTE/Wi-Fi)
  • 1 x Full-size PCIe Mini Card Slot: SATA/USB (for mSATA/Wi-Fi)
  • 3 x SIM Slot
  • 9~36 VDC Power Input

Barebone Only:

 $849.00

Configured:

$935.00

Customize

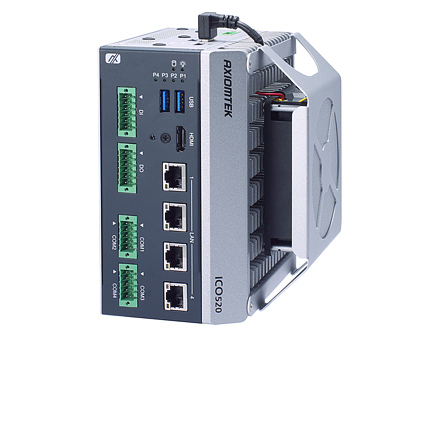

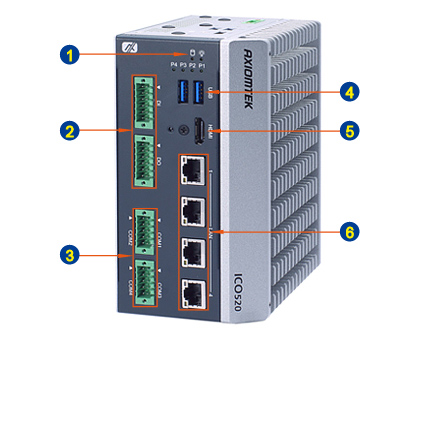

ICO520 Din-rail Fanless Embedded Computer Advanced Model
ICO520 Din-rail Fanless Embedded Computer Advanced Model

  • Model: Advanced Model
  • Intel Celeron Processor 7305E (8M Cache, 1.00 GHz)
  • Up to Intel Core i7 Processor (Optional)
  • 8GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 1 x M.2 (PCIe Gen2 x4): NVMe (2242/2280)
  • 4 x Isolated RS-232/422/485
  • 2 x Isolated 8-in/8-out DIO
  • 4 x Isolated 2.5GbE LAN
  • 4 x USB 3.1
  • 2 x HDMI
  • TPM 2.0
  • 1 x M.2 Key B 3050/3052 Slot: PCIe/USB (for 5G/Wi-Fi)
  • 1 x Full-size PCIe Mini Card Slot: PCIe/USB (for LTE/Wi-Fi)
  • 1 x Full-size PCIe Mini Card Slot: SATA/USB (for mSATA/Wi-Fi)
  • 3 x SIM Slot
  • 9~36 VDC Power Input

Barebone Only:

 $1,069.00

Configured:

$1,155.00
