Features:

• Cost-effective Fanless Design
• Intel Atom x5-E3930/E3940 processor (Apollo Lake)
• 1 x DDR3L SO-DIMM (Max. 8GB)
• 1 x 2.5" SATA 3.0 SSD, 1 x Half-size mSATA (Occupied 1 x PCI Express Mini Card Slot)

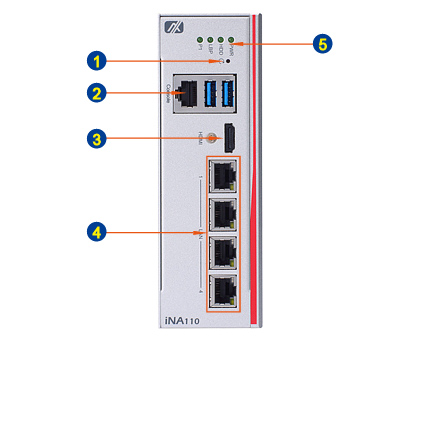

• 4 x GbE RJ-45 (Intel I210-IT) with LAN Bypass
• Supports TPM 2.0
• Wide Operating Temperature: -40°F to +158°F
• 9 to 36 VDC, Typical 12-24V Power Input with OVP, UVP, OCP, RPP
• Ideal for ICS Cybersecurity and Critical Infrastructure Protection

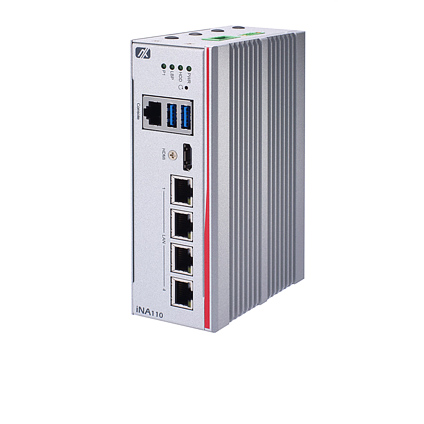

The iNA110 is a cost-effective, fanless DIN-rail cybersecurity gateway designed for ICS cybersecurity and critical infrastructure protection. Powered by the Intel Atom x5-E3930/E3940 processor (Apollo Lake), it delivers reliable performance in a compact, energy-efficient form factor. The system features four GbE RJ-45 ports with Intel I210-IT and LAN bypass functionality to ensure uninterrupted network connectivity. Built to withstand harsh environments, it supports a wide operating temperature range of -40°C to +70°C and offers a 9 to 36 VDC power input (typically 12–24V) with comprehensive protections including OVP, UVP, OCP, and RPP. With TPM 2.0 onboard, the iNA110 enhances system security, making it an ideal solution for safeguarding industrial networks and mission-critical systems.
