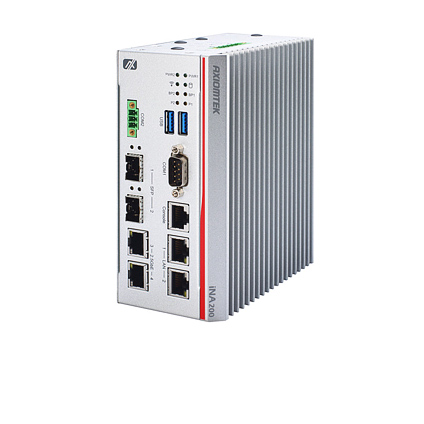

iNA200 DIN-Rail Cybersecurity Gateway
Features:
- Intel Atom x6212RE/x6414RE processor (Elkhart Lake)
- 1 x DDR4-3200 SO-DIMM (Max. 32GB)
- 1 x 2.5" SATA 3.0 SSD, 1 x eMMC Onboard (Optional)
- 2 x GbE LAN, 2 x 2.5GbE LAN, and 2 x SFP LAN
- Supports TPM 2.0
- Supports 5G with M.2 Key B 3042/3052
- Wide Operating Temperature: -40°F to +158°F
- Wide Power Input of 9 to 36V DC with Dual Power Input
- Ideal for OT Field Site Cybersecurity and Secured Edge
The iNA200 is a robust DIN-rail cybersecurity gateway designed to protect operational technology (OT) field sites and secure edge environments. Powered by an Intel Atom x6212RE or x6414RE processor (Elkhart Lake), it supports up to 32GB of DDR4-3200 memory for reliable, high-performance operation. The system offers advanced networking with 2 GbE LAN ports, 2 high-speed 2.5GbE LAN ports, and 2 SFP ports for flexible connectivity. Built for harsh conditions, it operates in temperatures ranging from -40°C to +70°C and supports a wide 9 to 36V DC dual power input for enhanced reliability. With built-in TPM 2.0 for secure hardware-based cryptography and support for 5G connectivity via M.2 Key B 3042/3052, the iNA200 is an ideal solution for modern industrial cybersecurity and resilient edge computing deployments.
Barebone & Base Configurations
- Intel Atom x6212RE Processor (1.5M Cache, 1.20 GHz)
Intel Atom x6414RE Processor (1.5M Cache, 1.50 GHz) (Optional) - 8GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1 x RS-232/422/485, 1 x RS-485 with 3-pin Terminal Block
- 2 x GbE LAN, 2 x 2.5GbE LAN, 2 x SFP LAN
- 1 x Console port (RJ-45)

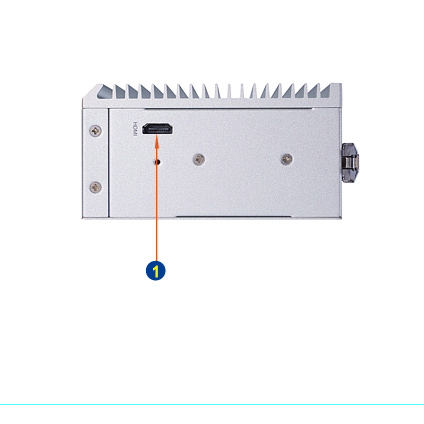

- 1 x HDMI
- 2 x USB 3.1
- TPM 2.0
- 1 x M.2 Key B 3042/3052 Slot (PCIe + USB Interface)
- 1 x Full-size PCIe Mini Card Slot (USB + SATA Interface)

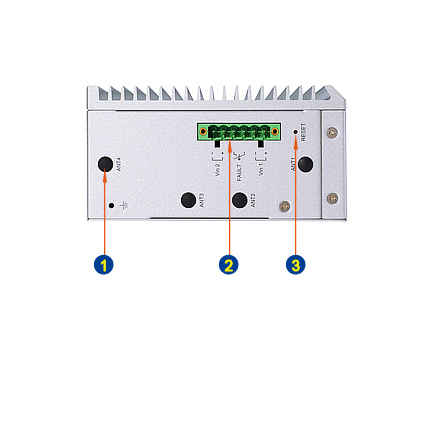

- 9 to 36V DC (typical 12/24V) with Terminal Block for Dual Power Input
