MPC153-834 - 15.6" WXGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor J1900

Features:

  • 15.6” WXGA TFT LCD Display with LED Backlight
  • Projected Capacitive Touch or 5-wire Flat Resistive Touch for Optional
  • Fanless Design with Intel® Celeron® Processor J1900 4 Cores (up to 2.42 GHz)
  • 1 x 204-pin DDR3L SO-DIMM, (Max. 8GB)
  • Half-slim SSD & CFast™ or mSATA
  • Antimicrobial Plastic Enclosure
  • IP65 Front Bezel and IPX1 Full Enclosure Design

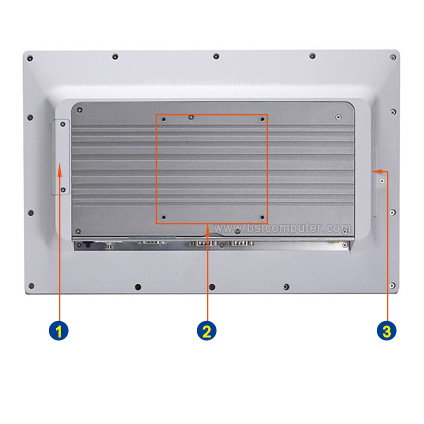

  • Supports Wall Mount/VESA Arm/ Desktop Stand (Optional)
  • Supports Smart Card Reader (Optional)
  • EN 60601-1/CE/FCC Class B Certified

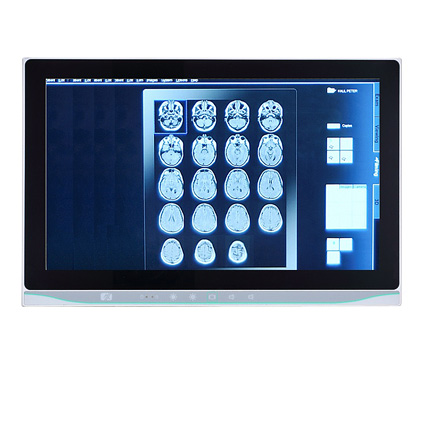

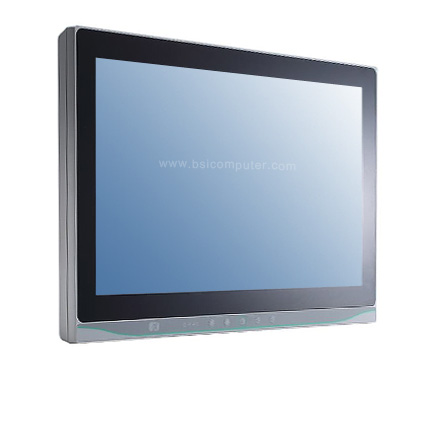

The MPC153-834 is a Fanless medial panel PC equipped with a 15.6-inch WXGA TFT LCD display with high brightness of 300nits. Specifically designed for the medical environment, the medical panel PC has IPX1 compliant chassis and IP65/NEMA 4 rated spill and dust-resistant front panel. Moreover, the wide-screen medical touch panel PC is equipped with an isolated COM port to protect equipment from electrical surges and transient voltage spike. The system runs on a quad-core Intel® Celeron® processor J1900, the powerful 15.6-inch MPC153-834 is an ideal choice as a point-of-patient-care EMR computer, enabling health care professionals to access patient records whenever and wherever needed.

Barebone & Base Configurations

MPC153-834 Medical Panel PC

  • 15.6" 1366x768 300 nits TFT LCD w/ Resistive Touchscreen
    Projected Capacitive Touch (Optional)
  • Intel® Celeron® J1900 Processor (2M Cache, 2.00 GHz)
  • 2GB DDR3L SO-DIMM Memory
  • 32GB Flash Disk; MSATA SATAIII Interface , MLC, 32°F~158°F

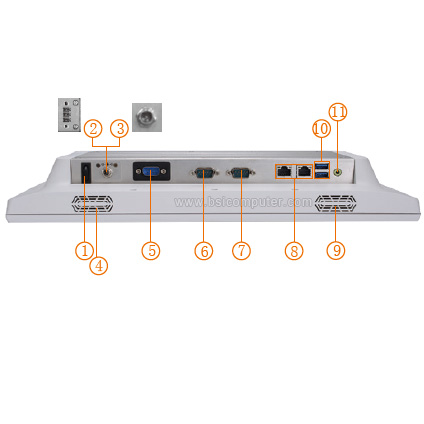

  • 1 x RS-232 (DB9) with isolated 4kV, 2 x RS-232/422/485 (DB9)
  • 2 x Gigabit Ethernet Ports
  • 2 x USB 3.0 Ports
  • 1 x Full-size PCIe Mini Card Slot with mSATA, 1 x Full-size PCIe Mini Card Slot with SIM
  • Wireless Module (Optional)
  • Screw Type Connector with 60W 100-240V AC-DC Power Adapter
  • Barebone Only:

    $1,275.00

    Configured:

    $1,315.00

    Customize
